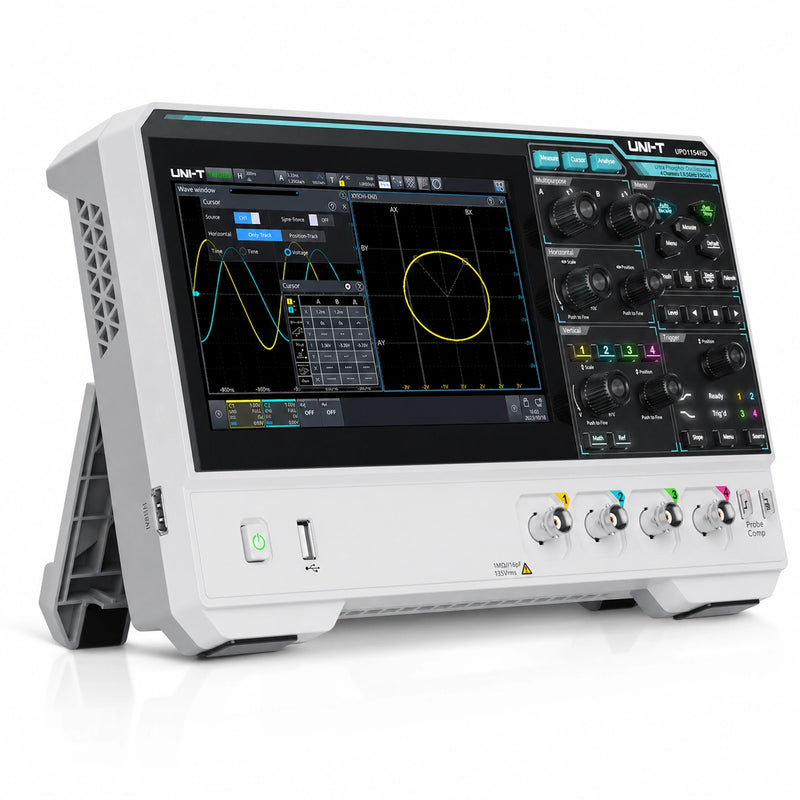

The UNI-T UPO1000HD Series combines 12-bit waveform acquisition with 80 MHz or 150 MHz bandwidth, a maximum real-time sample rate of 1.25 GSa/s and memory depth reaching 100 Mpts. Two- and four-channel configurations support electronics development, embedded debugging, power analysis, education and portable maintenance work.
Six integrated test functions provide oscilloscope acquisition, spectrum analysis, protocol decoding, power analysis, frequency measurement and digital voltage measurement in one compact platform. Standard serial bus decoding and twelve power-analysis functions reduce dependence on separate software options and additional bench instruments.
Key Features
-
12-bit vertical resolution: Provides 4096 quantization levels—16 times the number available from an 8-bit converter—for clearer examination of small waveform variations.
-
80 MHz or 150 MHz bandwidth: Offers two performance levels for education, maintenance, embedded development and power-electronics testing.
-
Two- and four-channel configurations: Allows users to select the required number of analog inputs without changing the core acquisition platform.
-
Up to 1.25 GSa/s real-time sampling: Captures signal transitions for circuit debugging and detailed waveform analysis.
-
Up to 100 Mpts memory depth: Preserves detailed waveform information over long acquisitions and supports investigation of intermittent events.
-
Six integrated test functions: Combines an oscilloscope, FFT spectrum analyzer, protocol analyzer, power analyzer, frequency counter and DVM.
-
Standard protocol decoding: Supports UART, I²C, SPI, CAN and LIN buses for embedded and automotive communication analysis.
-
Twelve power-analysis functions: Covers input, switching and output measurements for power supply development and validation.
-
USB-C PD 3.0 power support: Allows operation from a compatible power bank that meets the instrument’s power requirements.
-
VESA mounting compatibility: Supports monitor-style positioning for improved viewing comfort and more efficient use of bench space.
6-in-1 Test Platform
The UPO1000HD Series integrates the following measurement functions:
- High-resolution digital oscilloscope
- Protocol analyzer
- High-precision frequency counter
- Digital voltmeter
- Power analyzer
- FFT spectrum analyzer
Combining these tools in one instrument simplifies the test setup for circuit development, communication troubleshooting and power-electronics measurements.
Serial Bus Analysis
UART, I²C, SPI, CAN and LIN decoding is included as standard. Engineers can display decoded communication data together with acquired electrical waveforms, making it easier to identify incorrect data, timing problems and abnormal bus behavior during embedded-system and automotive electronics development.
Power Analysis
The UPO1000HD Series includes twelve power-analysis functions organized around input, switching and output evaluation:
-
Input analysis: Power quality, harmonic analysis and inrush current.
-
Switching analysis: Switching loss, Safe Operating Area, slew rate and steady-state on-resistance.
-
Output analysis: Ripple, modulation, power efficiency, transient response and ON/OFF time.
These measurements support power supply characterization, switching-device evaluation, efficiency optimization and transient-performance verification.
Portable USB-C Operation
The USB-C power input allows the oscilloscope to operate from a compatible USB Power Delivery 3.0 power bank that supplies the required power. This supports mobile troubleshooting and field measurements where a conventional AC outlet is unavailable.
VESA mounting compatibility also allows the instrument to be installed and positioned like a monitor, preserving usable bench space in laboratories, workshops and teaching environments.
Applications
- Embedded hardware and firmware debugging
- UART, I²C and SPI communication analysis
- CAN and LIN troubleshooting
- Switching power supply development
- Power quality, efficiency and transient testing
- Electronics maintenance and field service
- Engineering education and laboratory exercises
- General circuit development and waveform analysis
Model Selection
-
UPO1082HD: 80 MHz bandwidth with two analog channels.
-
UPO1084HD: 80 MHz bandwidth with four analog channels.
-
UPO1152HD: 150 MHz bandwidth with two analog channels.
-
UPO1154HD: 150 MHz bandwidth with four analog channels.
All four models provide 12-bit acquisition, a maximum real-time sample rate of 1.25 GSa/s and memory depth reaching 100 Mpts. Choose the bandwidth and channel count according to the number of signals and the highest frequency that must be measured simultaneously.
Why Choose the UPO1000HD Series?
The UPO1000HD Series is suited to users who need high-resolution acquisition, protocol debugging and power analysis in a portable instrument. Its two bandwidth levels, choice of two or four channels, deep memory, USB-C operation and VESA mounting support make it practical for both permanent laboratory installations and mobile test work.
