TRONOVO TR1010B 100MHz High-Voltage Differential Probe

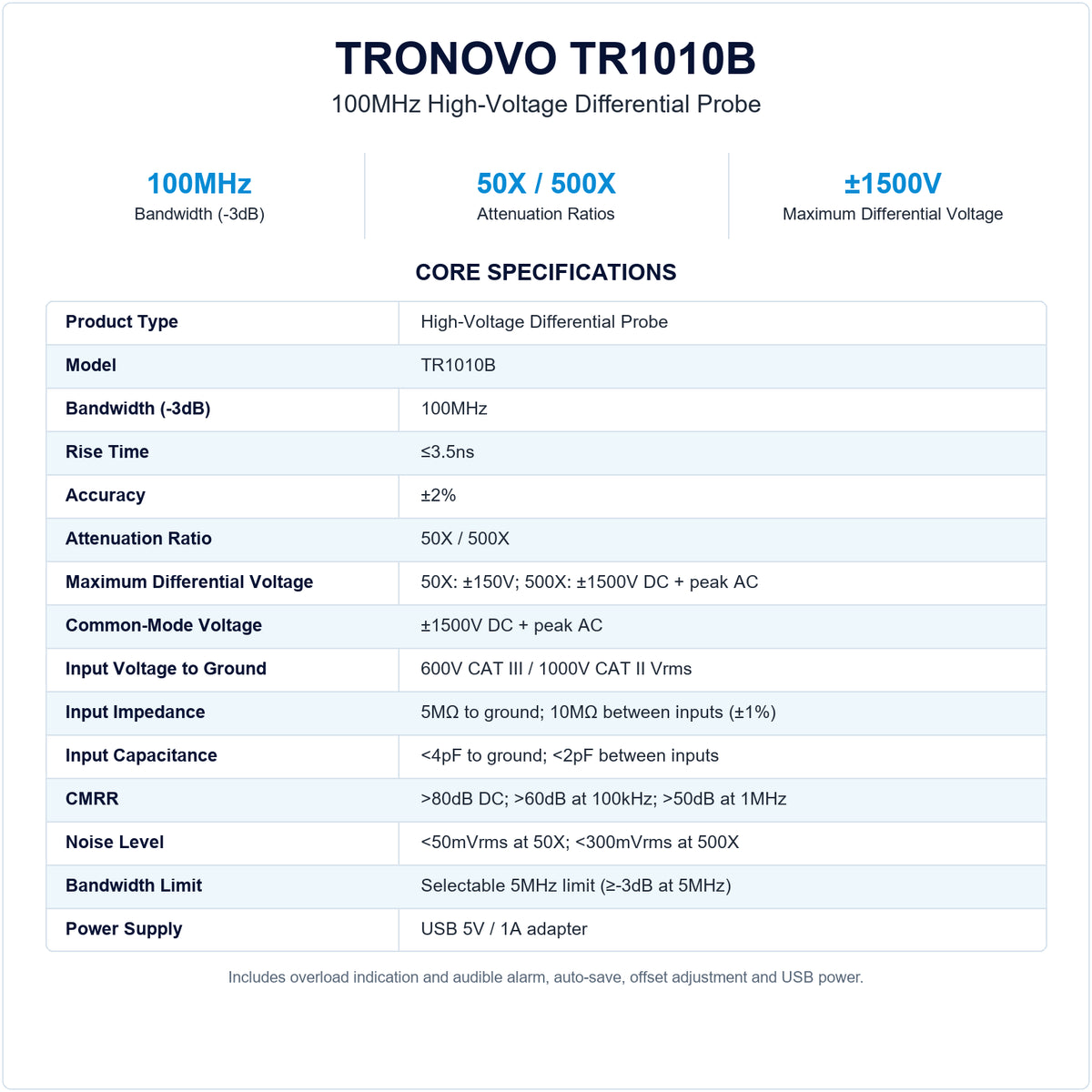

The TRONOVO TR1010B is a 100MHz high-voltage differential probe for safely presenting floating or isolated high-voltage signals to a ground-referenced oscilloscope. Its selectable 50X and 500X attenuation ranges support differential measurements up to ±150V and ±1500V DC plus peak AC, respectively.

A ≤3.5ns rise time, ±2% accuracy and strong common-mode rejection support detailed analysis of switching edges, PWM waveforms and power-conversion circuits. BNC compatibility and USB 5V/1A power simplify integration on laboratory benches, production lines and mobile test setups.

Key Features

• 100MHz bandwidth: Captures fast switching behavior and waveform detail in power-electronics measurements.
• 50X/500X attenuation: Select the range that matches lower- or higher-voltage differential signals.
• Up to ±1500V differential measurement: The 500X range supports high-voltage DC plus peak AC measurements.
• High input impedance: 5MΩ single-ended to ground and 10MΩ between inputs help reduce circuit loading.
• Common-mode rejection: Rated above 80dB at DC, above 60dB at 100kHz and above 50dB at 1MHz.
• Selectable 5MHz bandwidth limit: Helps reduce high-frequency noise when full bandwidth is unnecessary.
• Overload monitoring: Visual indication and an audible alarm support safer range supervision.
• USB power: Operates from a 5V/1A USB supply for a compact test-bench setup.
• Complete accessory kit: The available probe tips, hook tips and alligator clips support different connection tasks.

Applications

• Switching power supply development and troubleshooting
• Inverter and motor-drive control measurements
• Power semiconductor and SiC switching analysis
• Battery-system charging and discharging tests
• Floating PWM and non-ground-referenced signal measurement
• Laboratory verification, maintenance and production testing

Why Choose the TR1010B?

The TR1010B combines 100MHz bandwidth, two attenuation ranges, high common-mode rejection and a practical USB-powered design in one probe. It is suited to engineers who need to observe high-side, phase-to-phase or other floating signals without directly grounding the measured node through the oscilloscope.
