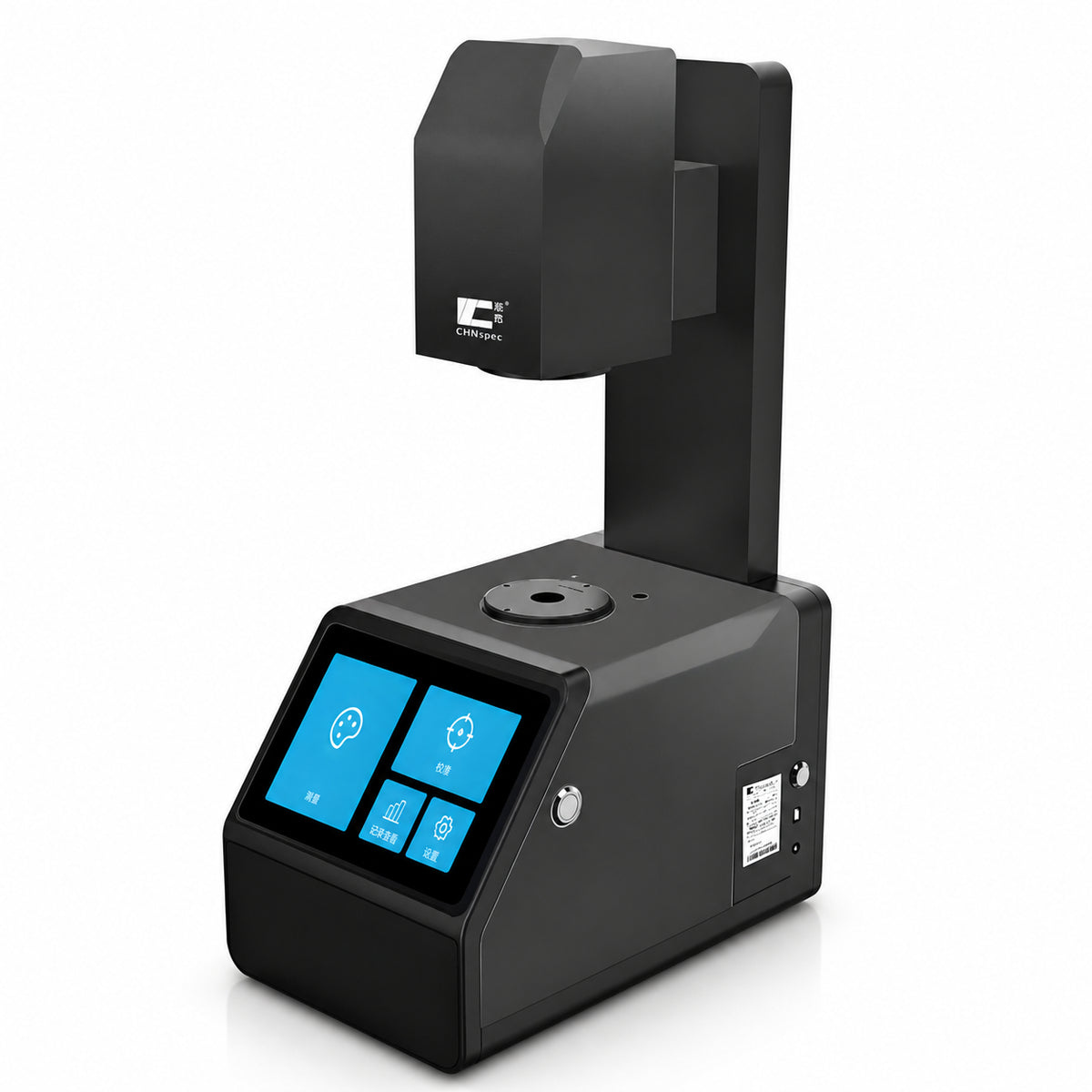

CHNSpec THC Series Color, Haze and Transmittance Meters

The CHNSpec THC-07, THC-08 and THC-100 are benchtop optical-analysis instruments for transparent and translucent plastics, films, glass and liquids. All three combine D/0 geometry, a 400–700nm spectral range, 21mm and 7mm apertures, ASTM and ISO measurement support and a 7-inch touchscreen.

The open measurement area supports large samples and either horizontal or vertical operation. Standard PC software enables online measurement, data export and report printing, while haze and transmittance repeatability of ≤0.03 supports demanding laboratory and production quality control.

Key Features

• Spectral optical analysis: Measure across 400–700nm with 10nm wavelength intervals and display the spectral-transmittance curve.
• Dual test apertures: Select 21mm or 7mm according to the available sample area.
• Haze and transmittance performance: 0.01% resolution, better-than-±1% accuracy and ≤0.03 repeatability support reliable comparison.
• ASTM and ISO workflows: Accommodate different haze measurement requirements, including ISO operation without a compensation port.
• Open sample area: Test sheets, films, panels, liquids and large materials in horizontal or vertical orientation.
• Touchscreen operation: The 7-inch display provides direct access to measurement, calibration, records and settings.
• PC connectivity: USB Type-B and supplied software support live measurement, export and printed test reports.
• Material coverage: Suitable for plastics, optical films, glass, display panels and other transparent or translucent materials.

Applications

• Plastic-film haze and transparency control
• Glass, LCD and touchscreen optical inspection
• Clarity and turbidity evaluation
• Liquid color and platinum-cobalt color analysis
• Incoming inspection, product development and production QC

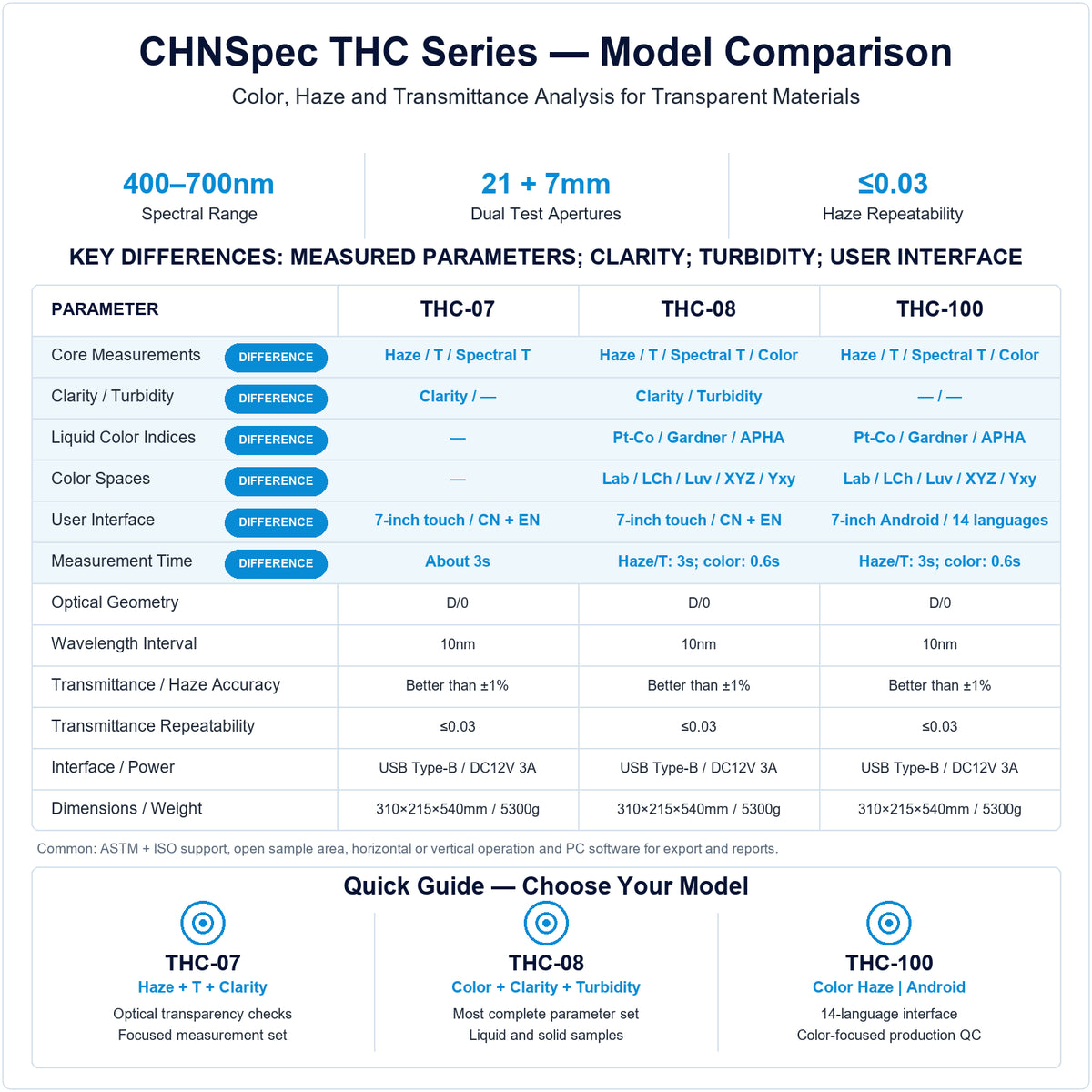

Model Differences & Selection

• THC-07: Measures haze, total transmittance, spectral transmittance and clarity. Choose it for focused optical-transparency work that requires clarity data but not the broader color-index package.
• THC-08: Adds comprehensive color spaces, color-difference formulas, clarity, turbidity and liquid color indices such as platinum-cobalt, Gardner and APHA. Select it for the broadest solid and liquid optical-analysis workload.
• THC-100: Combines haze, transmittance and extensive color measurement with an Android interface and 14 languages. It is suited to color-focused production QC and multilingual laboratory environments.

Why Choose the CHNSpec THC Series?

The THC Series combines haze, transmittance and model-dependent color or clarity analysis in a consistent dual-aperture platform. Buyers can match the software functions and interface to the task while retaining the same optical geometry, repeatability and sample-handling workflow.
