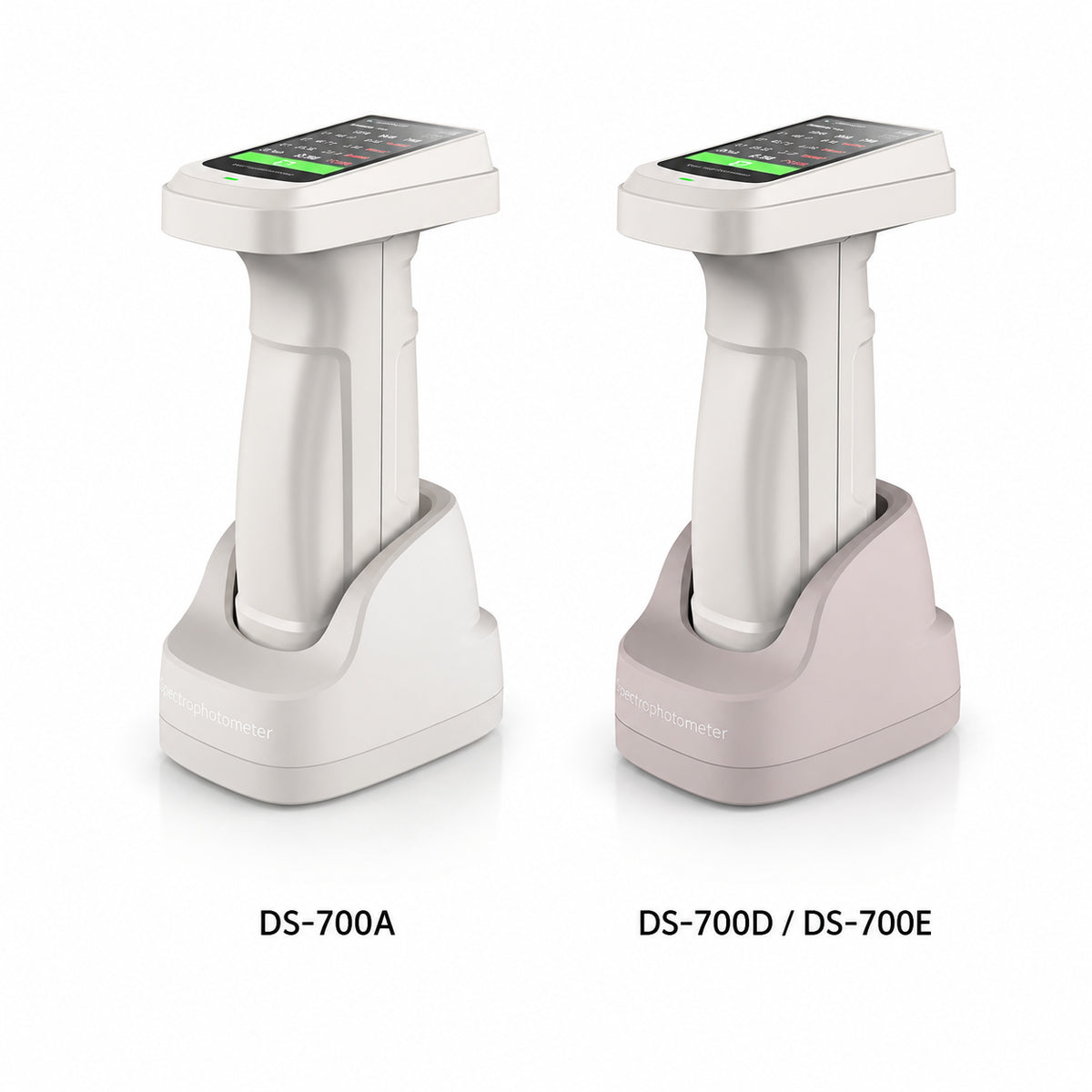

CHNSpec DS-700 Series Portable Spectrophotometers

The CHNSpec DS-700A, DS-700D and DS-700E are portable D/8 spectrophotometers that support both SCI and SCE measurement for professional color quality control. A 400–700nm spectral range, 10nm wavelength interval, more than 30 measurement parameters and nearly 40 evaluation illuminants support color inspection across coatings, plastics, printing, textiles and manufactured components.

The series scales from four-aperture visual measurement to camera-positioned UV measurement with up to twelve aperture configurations. Every model includes intelligent automatic calibration, USB and Bluetooth, a 3.5-inch full-color screen and connected workflows for Android, iOS, Windows and the WeChat mini program.

Key Features

• D/8 SCI+SCE geometry: evaluates color with specular reflection included or excluded to support glossy and matte sample comparisons.
• 400–700nm spectral measurement: records visible reflectance at 10nm intervals with 0.01% reflectance resolution.
• High repeatability: delivers up to ΔE*ab≤0.02 repeatability for stable quality-control measurements.
• Multiple measurement apertures: choose 4, 8 or 12 round and flexible aperture configurations for different sample sizes and shapes.
• Broad color evaluation: supports more than 30 color parameters and nearly 40 standard illuminants.
• Intelligent automatic calibration: calibrates the instrument when placed on its zirconium-reference base, reducing manual preparation.
• Integrated display and storage: the 3.5-inch screen presents results directly, while the instrument stores 100 standards and 10,000 samples.
• Connected data handling: USB and Bluetooth support mobile and Windows color-management workflows.
• Portable operating capacity: the rechargeable battery supports up to 8,000 continuous measurements per charge.

Applications

• Paint, coatings and plastics color consistency
• Printing, packaging and textile quality control
• Automotive interiors and manufactured component inspection
• Incoming material checks and production batch comparison
• Small, curved or narrow sample-area measurement
• Fluorescent material evaluation with UV-capable models

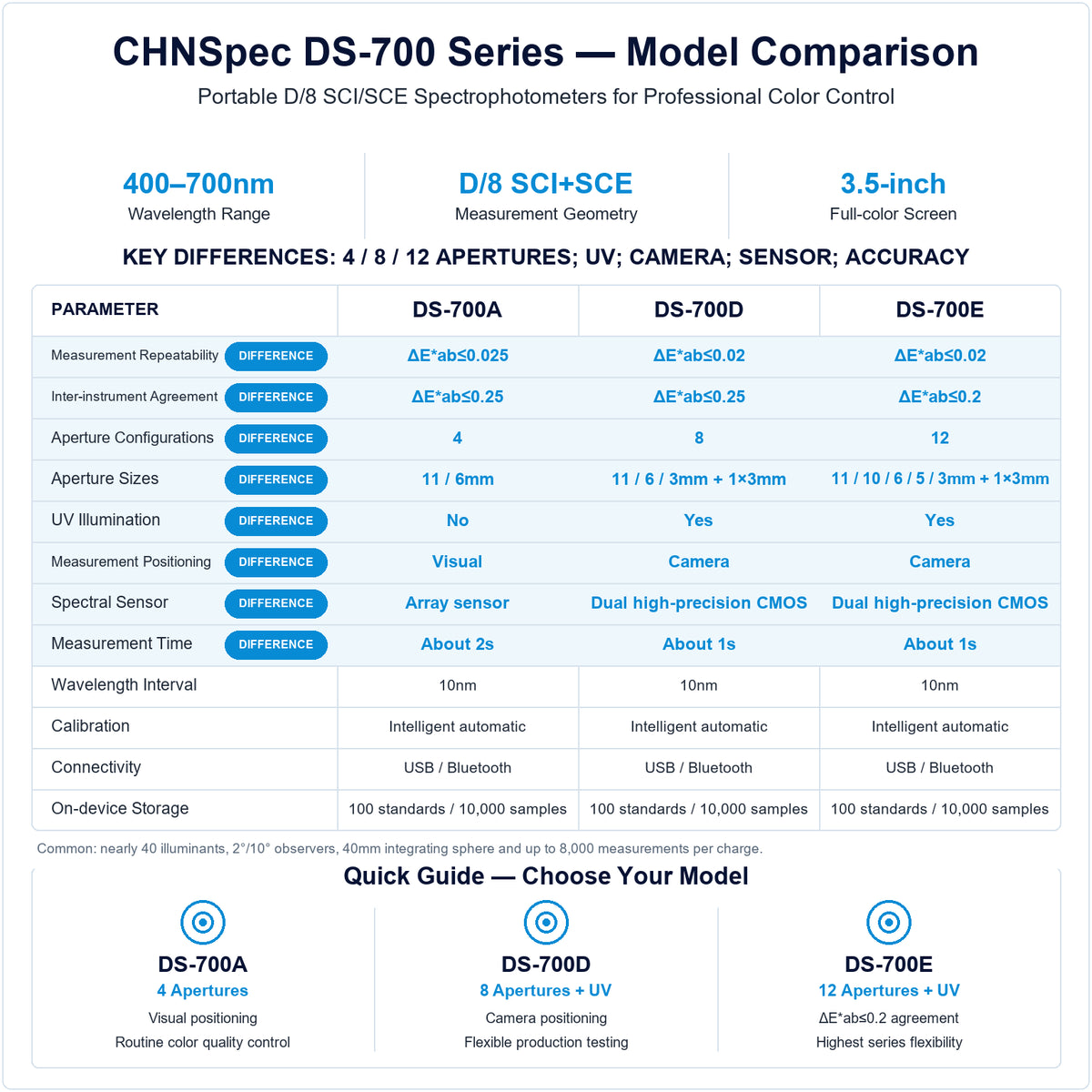

Model Differences & Selection

• DS-700A: provides four aperture configurations, visual positioning, a standard array sensor, ΔE*ab≤0.025 repeatability and an approximately 2s measurement time. Choose it for routine color inspection with conventional measurement areas.
• DS-700D: expands to eight aperture configurations and adds UV illumination, camera positioning, a dual high-precision CMOS array sensor, ΔE*ab≤0.02 repeatability and an approximately 1s measurement time. Choose it for flexible production testing, fluorescent materials and precise target placement.
• DS-700E: offers twelve aperture configurations while retaining the DS-700D UV, camera and dual-CMOS capabilities. Its ΔE*ab≤0.2 inter-instrument agreement makes it the preferred model when the widest sample flexibility and stronger agreement across multiple instruments are required.

Why Choose the DS-700 Series?

The DS-700 platform combines portable spectral measurement, automatic calibration and connected data management with a model range tailored to different sample geometries. Buyers can select the required aperture coverage and positioning capability without changing the core software and measurement workflow.
