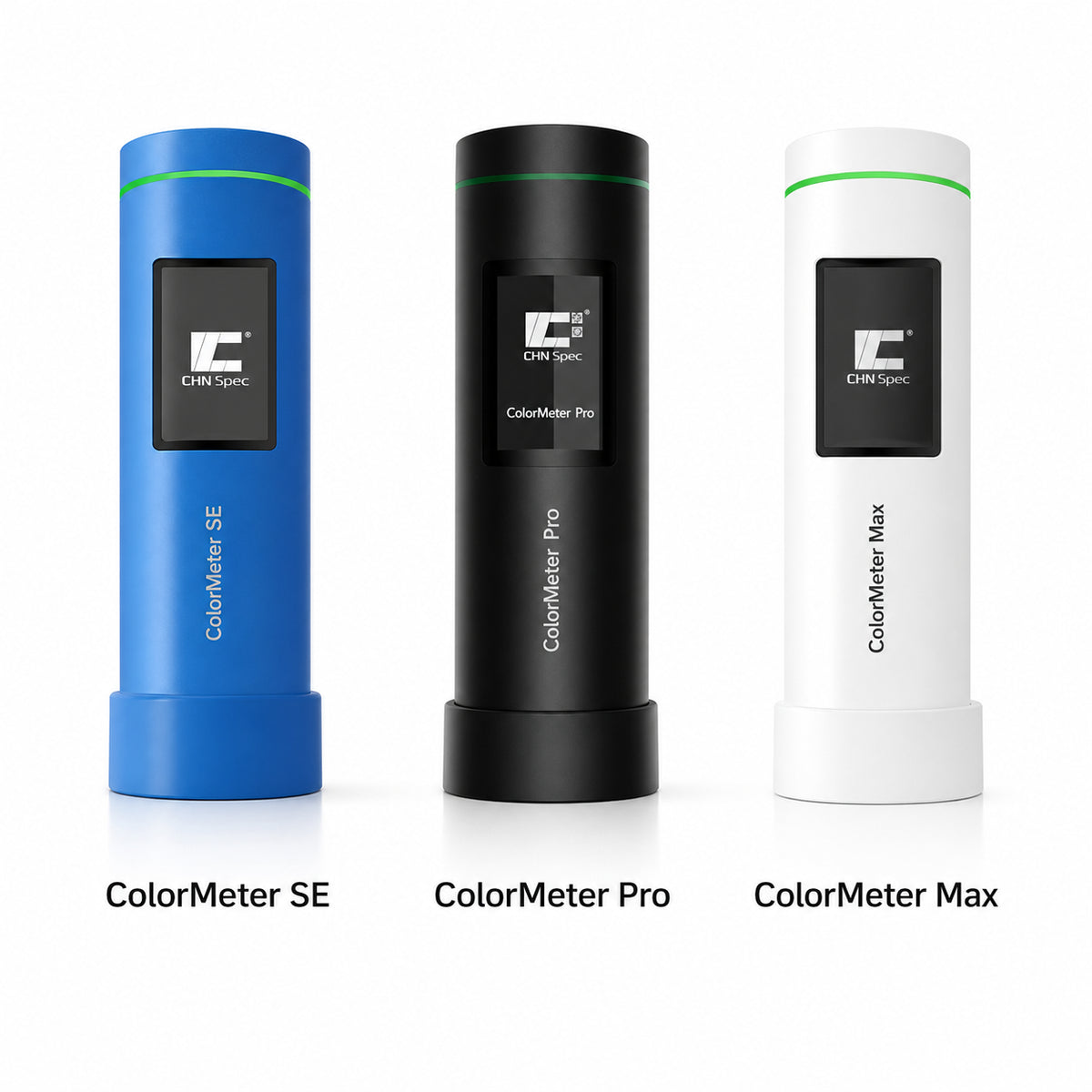

CHNSpec ColorMeter SE, Pro & Max Pocket Colorimeters

The CHNSpec ColorMeter SE, ColorMeter Pro and ColorMeter Max are compact D/8 SCI colorimeters designed for portable color checks in plastics, printing, packaging, textiles, garments and other production environments. Every model combines an 8mm aperture, Bluetooth connectivity, a 1.14-inch IPS color display and automatic calibration in a pocket-size 31×102mm housing weighing about 90g.

The range scales from essential CIE-Lab and ΔE*ab comparison to full 400–700nm spectral measurement and higher-consistency quality control. Mobile connectivity supports color records and color-card searches in the field, while Pro and Max also support Windows software for broader data-management workflows.

Key Features

• D/8 SCI geometry: provides consistent diffuse illumination and included-specular measurements for practical material color evaluation.
• 8mm measuring aperture: supports repeatable color checks on common manufactured samples and flat surfaces.
• Automatic calibration: prepares the instrument during startup and supports calibration reminders through the app.
• Instrument display: the 1.14-inch IPS screen presents color results and pass/fail information without requiring a connected phone.
• Bluetooth workflow: connects with Android and iOS devices for measurement records, color matching and database access.
• Portable format: the cylindrical 31mm-diameter body is 102mm tall and weighs approximately 90g.
• Balanced LED illumination: provides a stable internal light source across all three models.
• Scalable data capability: choose basic CIE-Lab/ΔE*ab results or full spectral and color-index analysis according to the model.

Applications

• Paint, plastics and coating color checks
• Printing, packaging and textile color matching
• Garment production and incoming material inspection
• Shop-floor pass/fail color comparison
• Portable color-card search and digital color database management

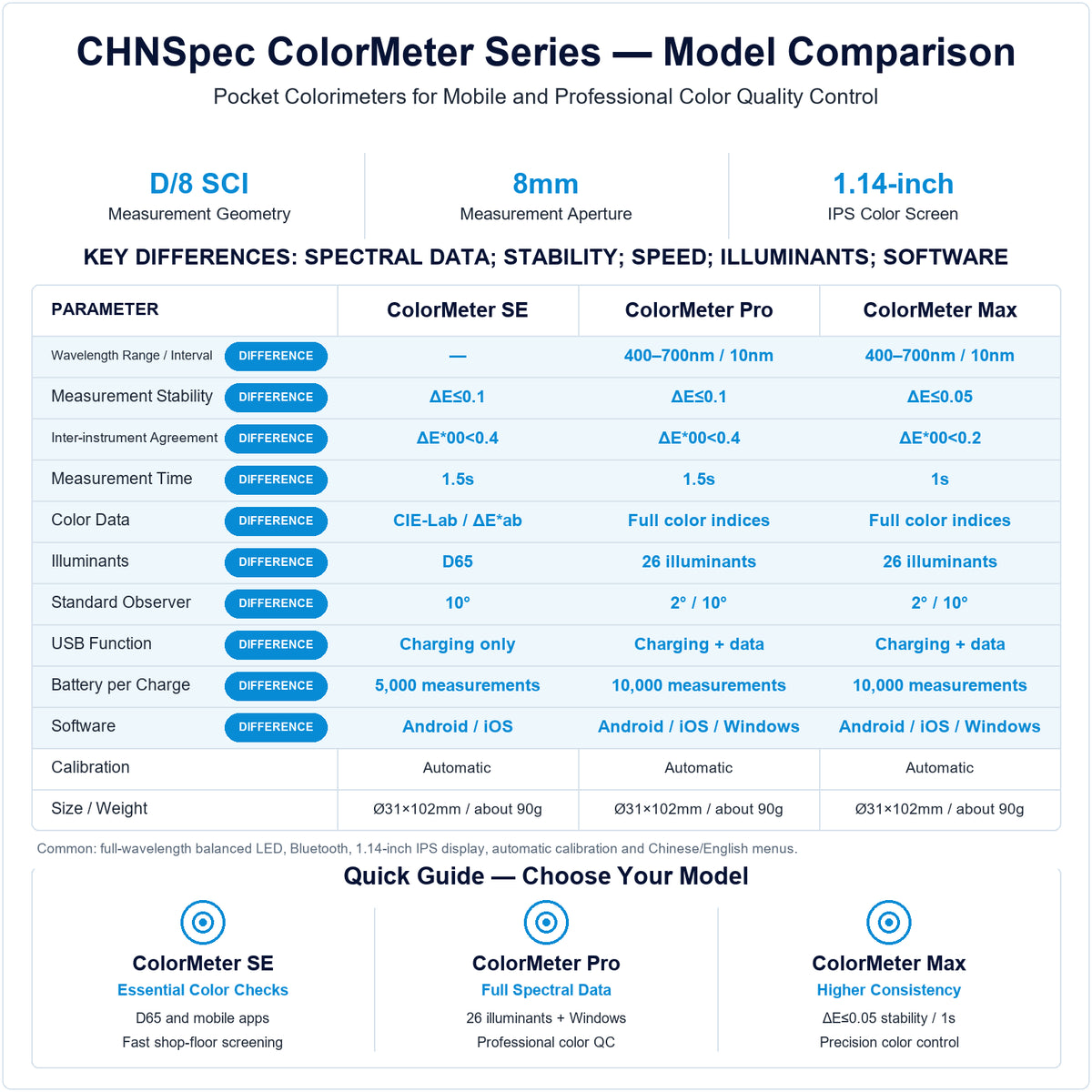

Model Differences & Selection

• ColorMeter SE: measures CIE-Lab, ΔE*ab and a reflectance curve using D65 and a 10° observer. It provides ΔE≤0.1 stability, approximately 1.5s measurement time, up to 5,000 measurements per charge and Android/iOS support. Choose SE for straightforward mobile color screening.
• ColorMeter Pro: adds a 400–700nm spectral range at 10nm intervals, a broad set of color indices, 26 illuminants, 2°/10° observers, USB data connectivity, Windows support and up to 10,000 measurements per charge. Choose Pro for professional color QC and spectral data management.
• ColorMeter Max: retains the Pro feature set while improving stability to ΔE≤0.05, inter-instrument agreement to ΔE*00<0.2 and measurement time to 1s. Choose Max when faster inspection and stronger agreement between instruments are important.

Why Choose the ColorMeter Series?

The ColorMeter platform combines stand-alone measurement with mobile color tools in a device that can be carried between receiving inspection, production and customer-facing color selection. Its three performance levels let teams standardize the operating workflow while selecting the data depth and measurement consistency required for each role.
