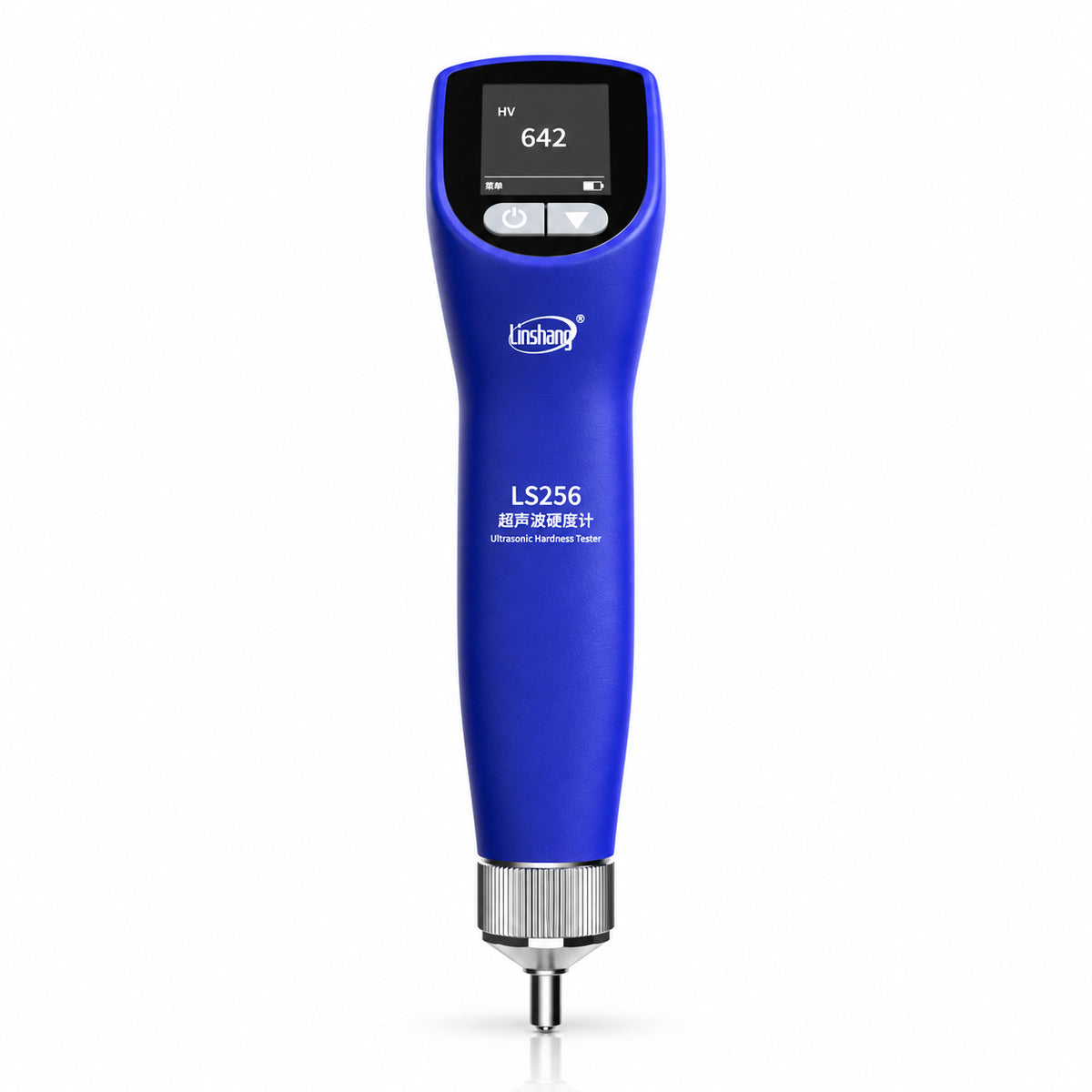

Linshang LS256 20N UCI Ultrasonic Hardness Tester

The Linshang LS256 is a portable ultrasonic hardness tester that uses the ultrasonic contact impedance (UCI) method to measure metallic materials with minimal surface indentation. Its integrated 20N probe is suited to finished components, coatings, plated surfaces, hardened layers, small parts and irregular workpieces where conventional indentation methods may be impractical.

Nine selectable hardness scales, a 1-second measurement cycle and Bluetooth data transfer support fast inspection in production, workshops and field service. The 245g handheld body combines the probe, display and controls in one instrument for convenient one-handed testing.

Key Features

• UCI measurement method: Produces only a small indentation, helping preserve precision-finished and surface-hardened parts.
• 20N integrated probe: Supports convenient measurements on flat, small and irregular metallic components.
• Nine hardness scales: Displays HV, HRC, HRB, HRA, HS, HL, HB, HRE and HRF values without separate manual conversion.
• Fast results: A measurement is displayed in approximately 1 second for efficient batch inspection.
• Measurement ranges: Covers HV 50–1700, HRC 20–70, HRB 13–100 and the corresponding official ranges for the other supported scales.
• User calibration: Standard hardness blocks can be used to reduce systematic measurement error.
• Bluetooth mobile app: Transfers data for grouped storage, review and sharing.
• On-device storage: Retains up to nine sets of results for direct review and comparison.
• Long battery runtime: The rechargeable 3.7V 1000mAh battery supports more than 5,000 continuous measurements per full charge.
• USB-C charging: Simplifies charging in laboratory, workshop and mobile inspection environments.

Applications

• Hardened layers, coatings and plated metal surfaces
• Gears, shafts, fasteners, flanges and wheel hubs
• Thin plates and lightweight samples coupled to a rigid support
• Weld inspection and localized hardness checks
• Incoming inspection, production quality control and maintenance

Why Choose the Linshang LS256?

The LS256 combines a compact UCI probe, multiple hardness scales, rapid measurement and mobile data handling in one instrument. It is a practical choice when conventional bench testers are too large or their indentations are unsuitable for the component being inspected.

Standard Package

• LS256 ultrasonic hardness tester
• USB data cable
• Standard hardness block
• User manual
• Calibration report
