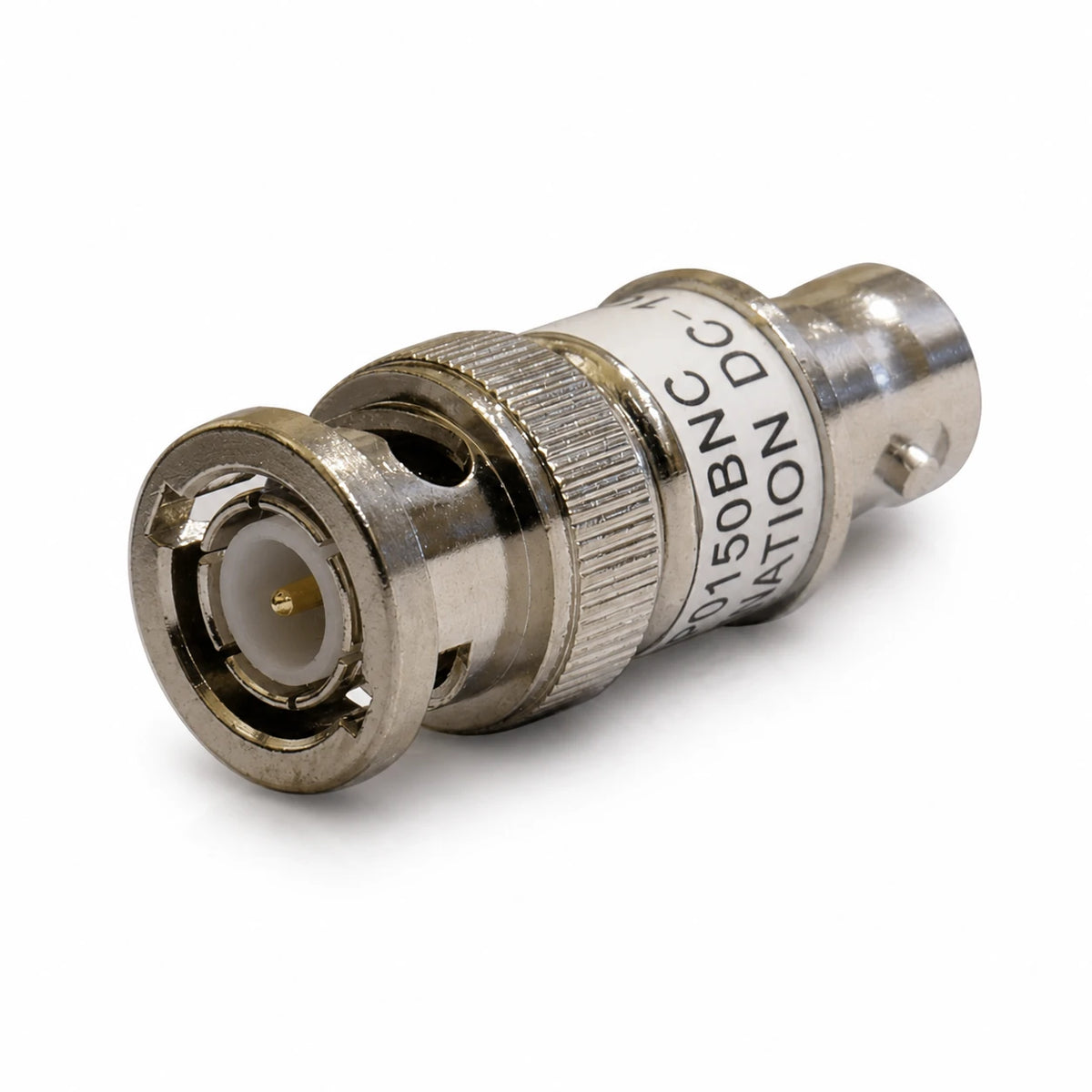

The RIGOL ADP0150BNC is a compact 50Ω impedance adapter designed for use with oscilloscopes, waveform generators and other compatible BNC test equipment. It provides a correctly terminated 50Ω signal path for measurements involving 50Ω coaxial cables, signal sources and test systems.
With power handling up to 2W and a specified bandwidth of 1GHz, the adapter is suitable for laboratory measurements, signal-integrity testing, waveform verification and general electronic troubleshooting.
50Ω Signal-Path Termination
Many signal generators and coaxial measurement systems are designed around a 50Ω impedance environment. When a signal is connected directly to a high-impedance oscilloscope input, the displayed amplitude may differ from the generator’s configured value and signal reflections may affect waveform quality.
The ADP0150BNC provides the required 50Ω termination at the measurement input, helping maintain the intended load impedance and improve signal integrity throughout the coaxial connection.
Bandwidth up to 1GHz
The adapter supports signal frequencies up to 1GHz, making it suitable for both general-purpose waveform measurements and higher-frequency testing within its specified power limit.
The usable bandwidth of the complete measurement system also depends on the oscilloscope, signal generator, BNC cable and any other connected accessories.
2W Power Handling
The ADP0150BNC is rated for maximum power dissipation of 2W. Users should confirm the signal voltage, waveform and source conditions before connection to ensure that the adapter’s power rating and the input rating of the connected instrument are not exceeded.
Key Features
- 50Ω impedance matching and termination
- Bandwidth up to 1GHz
- Maximum power handling of 2W
- BNC connection for convenient installation
- Designed for oscilloscopes and waveform generators
- Suitable for 50Ω coaxial measurement systems
- Helps reduce signal reflections caused by impedance mismatch
- Supports accurate signal-generator amplitude verification
- Compact inline design
- No external power supply required
Typical Applications
- Terminating a high-impedance oscilloscope input at 50Ω
- Connecting a waveform generator to an oscilloscope
- Verifying signal-generator output amplitude
- Testing circuits with 50Ω coaxial interfaces
- Pulse and waveform integrity measurements
- RF and high-frequency signal testing
- Laboratory equipment calibration setups
- Electronic development and troubleshooting
Product Specifications
- Model: ADP0150BNC
- Nominal impedance: 50Ω
- Maximum power: 2W
- Bandwidth: up to 1GHz
- Interface type: BNC
- Accessory type: impedance matching and termination adapter
- Recommended equipment: oscilloscopes, waveform generators and compatible 50Ω BNC instruments
Compatibility and Selection Guidance
Choose the ADP0150BNC when a 50Ω signal source or coaxial system must be connected to an instrument input that does not provide a selectable internal 50Ω termination.
An additional adapter may be unnecessary when the oscilloscope already offers a suitable built-in 50Ω input mode. Before ordering, confirm the input impedance options, BNC interface and electrical ratings of the specific instrument.
The ADP0150BNC is intended for 50Ω systems. It should not be selected as a substitute for a 75Ω-to-50Ω impedance converter or as an attenuator for signals that exceed the adapter or instrument input ratings.
Why Choose the RIGOL ADP0150BNC?
The ADP0150BNC provides a straightforward way to add 50Ω termination to compatible oscilloscope and signal-generator connections. Its 1GHz bandwidth and 2W rating make it a practical accessory for technicians and engineers who need dependable impedance matching without changing their existing test instruments.
