The TRONOVO MR63RE is a portable anti-static resistance test kit for internal quality control in electronics manufacturing and other ESD-controlled workplaces. Its MR63 meter covers a resistance range of 10³–10¹²Ω and supports surface, point-to-point and point-to-ground resistance measurements on materials, work surfaces, floors, clothing, carts and shelving.

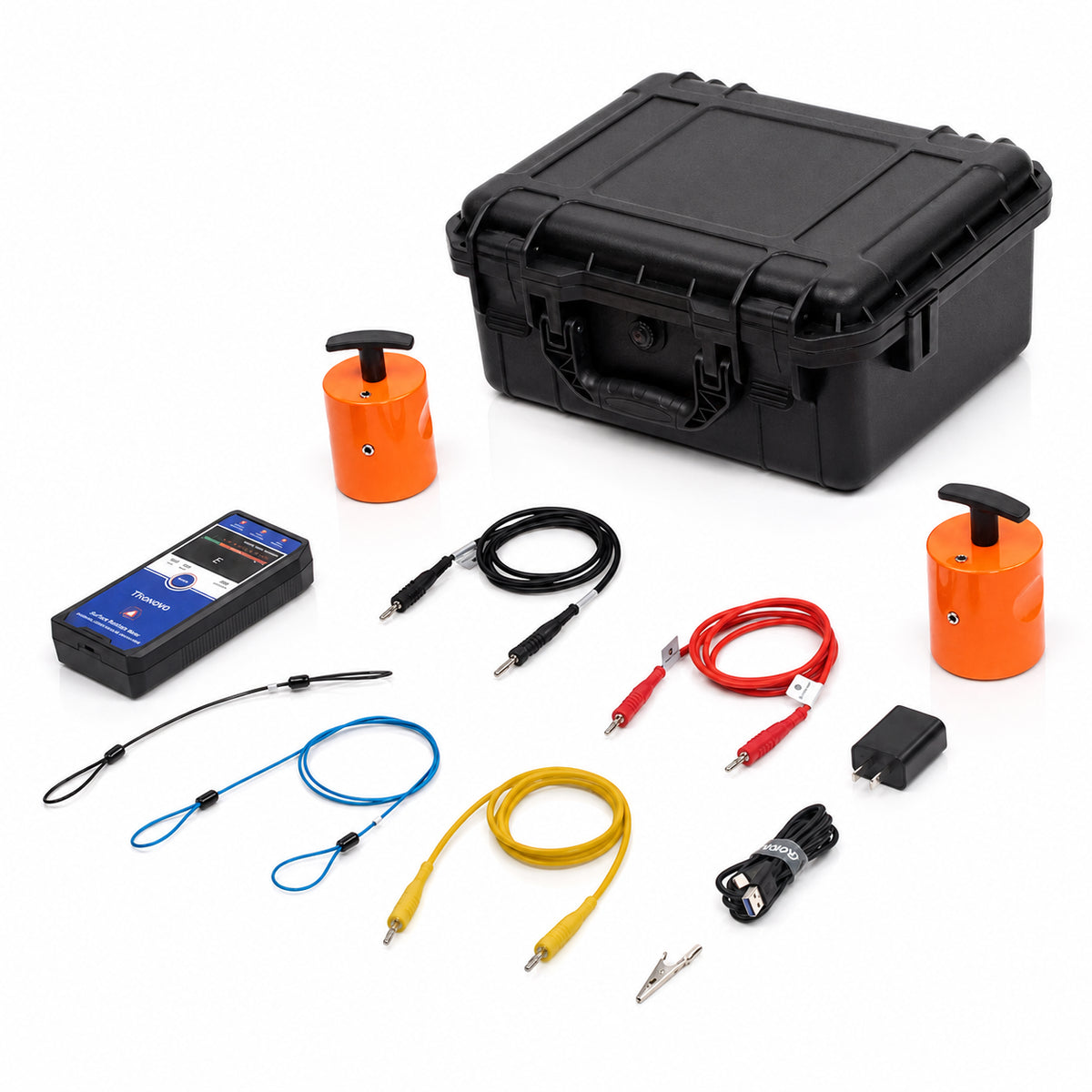

The kit combines automatic 10V/100V test voltage selection with a TFT color display, integrated temperature and relative-humidity measurement, PASS/FAIL evaluation and measurement storage. Two weighted cylindrical electrodes, test leads, cable spacers, charging accessories and a protective carrying case support repeatable checks at the workstation or around the facility.
Key Features
-
10³–10¹²Ω resistance range: Covers conductive, static-dissipative and insulating materials used in ESD control programs.
-
Automatic 10V/100V test voltage: Selects the appropriate test voltage with a specified voltage accuracy of ±5%.
-
TFT color display: Presents the resistance value, exponent, temperature, relative humidity and an analog-style indication in one clear interface.
-
Integrated temperature and humidity measurement: Records environmental conditions that can materially affect resistance readings.
-
Configurable test modes: Supports automatic, continuous and timed measurements with a selectable duration from 5–120s.
-
PASS/FAIL and audible indication: Helps operators evaluate results quickly during routine ESD inspections.
-
Storage for up to 99 measurements: Stored readings can be recalled and exported to a PC for documentation.
-
Rechargeable portable design: Uses two 3.7V Li-ion batteries and provides a specified standby time of up to 240h.
-
USB Type-C interface: Provides a current connection standard for charging and data-related workflows.
Applications
- Surface resistance checks on ESD materials and workbench coverings
- Point-to-point resistance verification on work surfaces and floors
- Point-to-ground resistance tests on clothing, carts and shelving
- Routine internal ESD quality-control inspections in electronics facilities
- Recording resistance together with ambient temperature and relative humidity
Why Choose the MR63RE?
The MR63RE brings the meter, weighted electrodes, leads and transport protection together in one economical field kit. It is suited to teams that need repeatable resistance checks, environmental context and basic result documentation without building a test set from separate components.
