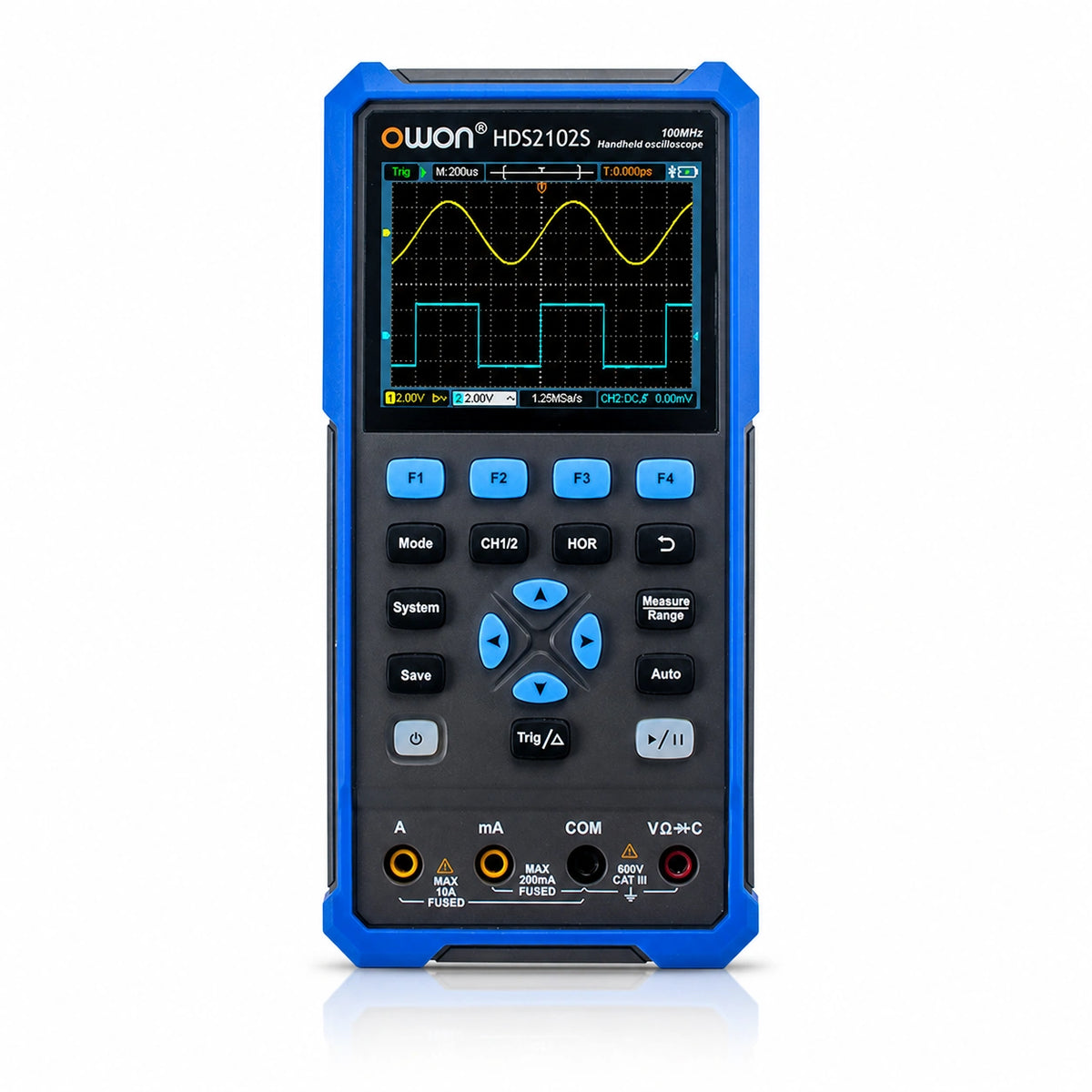

OWON HDS200 Handheld Oscilloscope Multimeter up to 200MHz

The OWON HDS200 Series combines a 2-channel digital oscilloscope and 20,000-count True RMS multimeter in a compact handheld instrument. Models are available with bandwidths from 25MHz to 200MHz and maximum real-time sampling rates from 250MSa/s to 1GSa/s, providing portable measurement capability for electronics troubleshooting, field service, laboratory work, education and industrial maintenance.

Every model includes separate oscilloscope and multimeter inputs, allowing technicians to move efficiently between waveform analysis and electrical measurements. S models add a single-channel waveform generator for circuit stimulation, signal simulation and portable debugging without carrying a separate generator.

Key Features

• 2-channel oscilloscope: Observe and compare two signals during circuit debugging, maintenance and system testing.
• 25MHz to 200MHz model range: Select the bandwidth required for general electronics, embedded systems, switching circuits and higher-frequency troubleshooting.
• Up to 1GSa/s real-time sampling: The HDS2202 and HDS2202S provide the series' highest sampling rate for capturing faster signal transitions.
• Up to 10,000wfms/s refresh rate: Fast waveform updates help reveal intermittent events and changing signal behavior.
• Peak-detect acquisition: Capture narrow pulses and signal anomalies that may be missed during normal acquisition.
• Automatic and cursor measurements: Measure frequency, period, amplitude, maximum, minimum, mean and peak-to-peak values, with cursor-based ΔV and ΔT analysis.
• 20,000-count True RMS multimeter: Measure voltage, current, resistance, capacitance, diodes and continuity from the same portable platform.
• Waveform generator on S models: Generate sine, square, ramp, pulse and arbitrary waveforms for circuit testing and signal simulation.
• Portable color display: The 3.5-inch high-contrast LCD provides clear waveform and measurement visibility for indoor and outdoor work.
• USB Type-C and SCPI support: Connect to PC software, transfer measurement data and integrate the oscilloscope into automated or secondary-development workflows.
• Rechargeable field operation: The replaceable 18650 lithium battery supports approximately 3–6 hours of operation, while USB Type-C enables charging from a compatible adapter or power bank.
• Built-in self-calibration: Perform instrument calibration without additional external equipment when required by the operating procedure.

Applications

• Electronic circuit troubleshooting and repair
• Embedded-system signal inspection
• Industrial equipment maintenance
• Field-service measurements and diagnostics
• Laboratory experiments and educational demonstrations
• Power supply and switching-signal checks
• Portable signal generation and circuit-response testing with S models

Why Choose the OWON HDS200 Series?

The HDS200 Series reduces the number of instruments required for mobile measurement work by combining oscilloscope and multimeter functions in every model. Users can select bandwidth and sampling performance according to their signal requirements, then choose the corresponding S version when an integrated waveform generator is needed. Its separate measurement inputs, rechargeable operation and compact format make it suitable for technicians, engineers, students and electronics developers working both at a bench and in the field.
