Hantek6004BD 4-Channel 70–250MHz PC USB Oscilloscopes

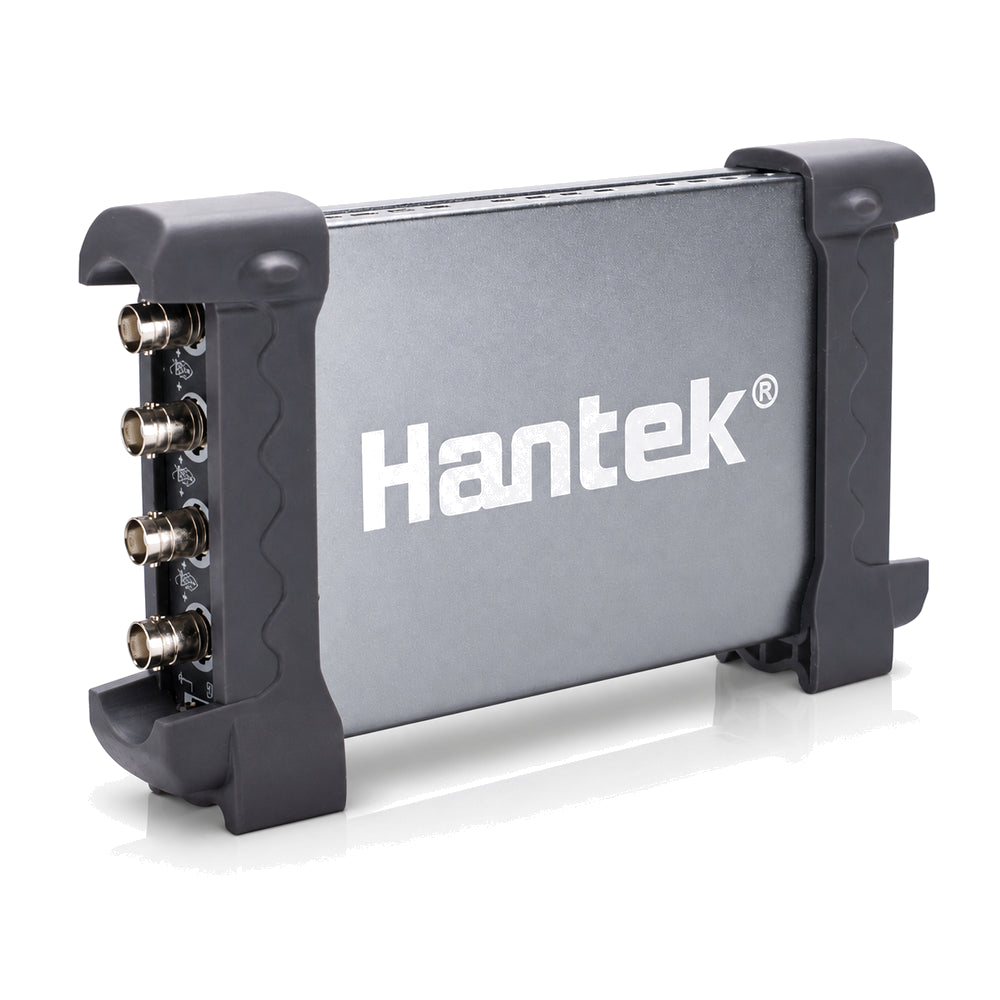

The Hantek6004BD Series is a compact four-channel PC USB oscilloscope platform with 70MHz, 100MHz, 200MHz and 250MHz bandwidth options. Every model combines four independent analog inputs, up to 1GSa/s real-time sampling, 64K/CH memory and a one-channel 25MHz function/arbitrary waveform generator for acquisition and stimulus generation from the same instrument.

USB 2.0 connectivity provides power and computer control without a separate external supply. The anodized aluminum enclosure and protective end frames make the unit suitable for engineering workbenches, production-line troubleshooting, education and mobile computer-based measurement.

Key Features

• Four independent analog channels: Observe several related circuit nodes, power rails or control signals in one acquisition.
• 70–250MHz model range: Select the bandwidth needed for routine electronics work through higher-speed design validation.
• 1GSa/s real-time sampling: Captures waveform timing and edge detail across the full model family.
• 64K/CH memory depth: Retains acquisition data for navigation, measurement and waveform review in the PC software.
• Integrated 25MHz waveform generator: Produces standard or arbitrary test signals without adding a separate source.
• 12-bit AWG output: Supports controlled waveform generation with a 2KSa arbitrary waveform depth.
• Pass/fail and automatic measurements: Streamlines repetitive checks and engineering verification tasks.
• Serial bus trigger and decode: Displays supported bus information in a table for faster protocol-related troubleshooting.
• FFT and waveform mathematics: Adds frequency-domain inspection and arithmetic analysis to time-domain measurements.
• USB-powered aluminum design: Reduces bench space and simplifies transport between computers and test stations.

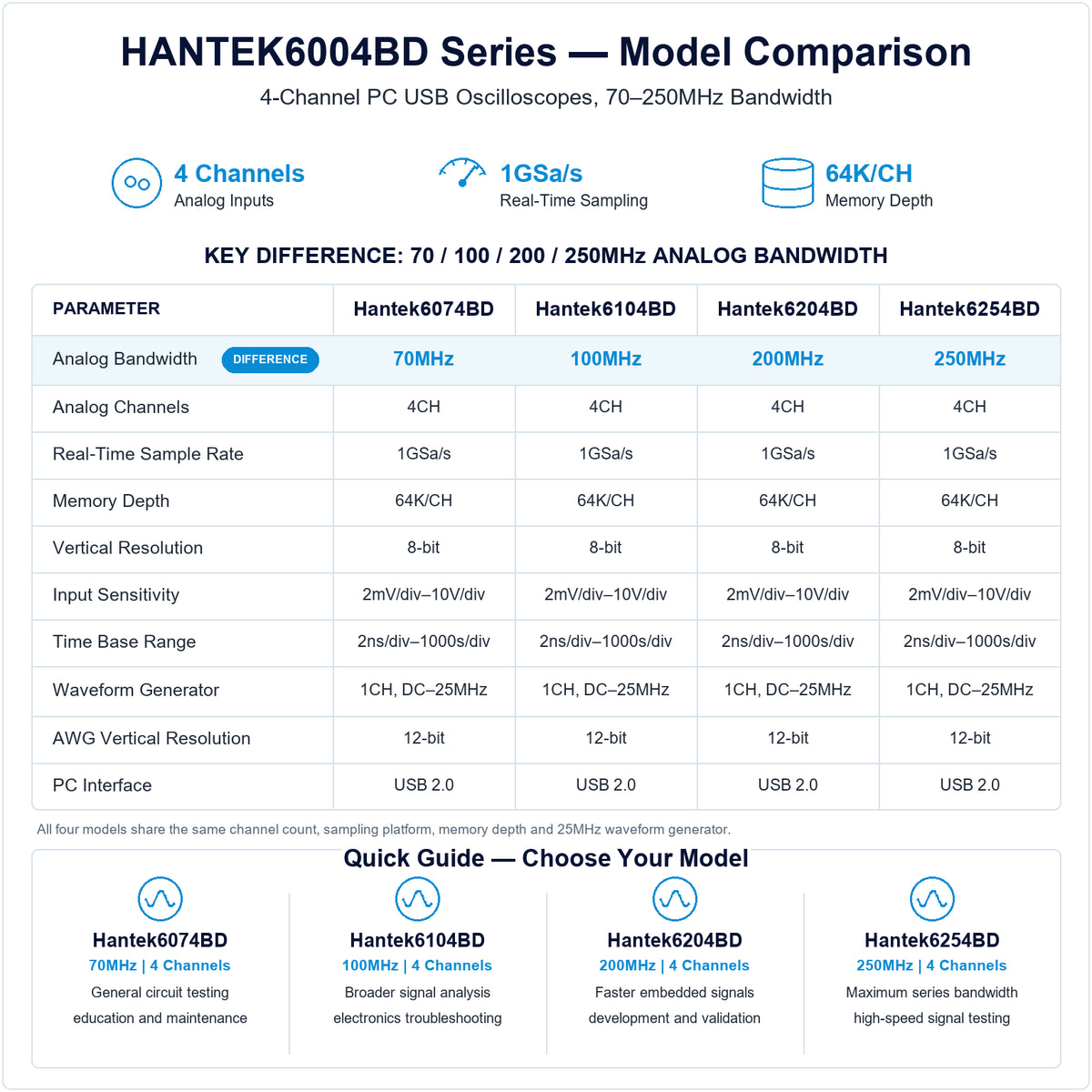

Model Differences & Selection

• Hantek6074BD — 70MHz: Suited to education, routine maintenance and general low-frequency circuit testing.
• Hantek6104BD — 100MHz: Adds bandwidth headroom for broader electronics troubleshooting and control-system work.
• Hantek6204BD — 200MHz: Fits faster embedded signals, product development and validation tasks.
• Hantek6254BD — 250MHz: Provides the highest bandwidth in the series for high-speed signal inspection.

Applications

• Electronic circuit development and debugging
• Production-line testing and pass/fail inspection
• Equipment repair and maintenance
• Embedded-system and serial-bus analysis
• Engineering education and laboratory training
• Multi-channel PC-based data acquisition

Why Choose the Hantek6004BD Series?

The series provides four-channel acquisition and waveform generation in a compact USB-powered instrument. Because the four models share the same sampling platform, memory, inputs and AWG capabilities, selection is straightforward: choose Hantek6074BD, Hantek6104BD, Hantek6204BD or Hantek6254BD according to the analog bandwidth required by the application.
