Hantek6004BC 4-Channel 70–250MHz PC USB Oscilloscopes

The Hantek6004BC Series is a compact four-channel PC USB oscilloscope platform with 70MHz, 100MHz, 200MHz and 250MHz bandwidth options. Every model provides four independent analog inputs, up to 1GSa/s real-time sampling, 64K/CH memory and 8-bit vertical resolution for computer-based waveform acquisition and analysis.

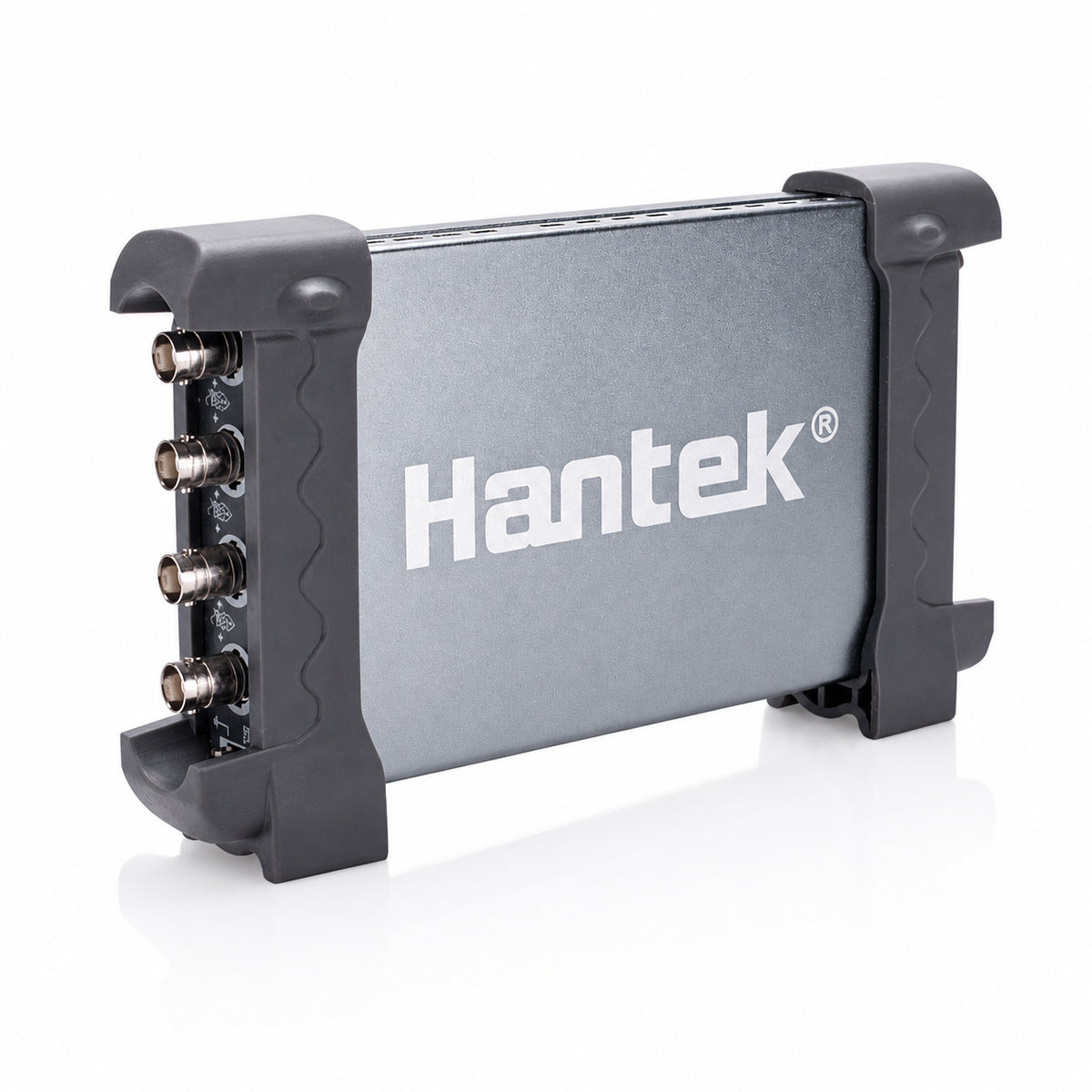

USB 2.0 connectivity supplies power and computer control without a separate external supply. The anodized aluminum enclosure and protective end frames make the instrument suitable for engineering workbenches, production-line troubleshooting, education and mobile PC-based measurement.

Key Features

• Four independent analog channels: Observe several related circuit nodes, power rails or control signals in one acquisition.
• 70–250MHz model range: Select the bandwidth needed for routine electronics work through higher-speed design validation.
• 1GSa/s real-time sampling: Captures waveform timing and edge detail across the full model family.
• 64K/CH memory depth: Retains acquisition data for navigation, measurement and waveform review in the PC software.
• 2mV/div–10V/div sensitivity: Supports viewing low-level signals and larger circuit waveforms with selectable probe attenuation.
• Pass/fail testing: Helps automate repetitive waveform checks in engineering and production workflows.
• Serial bus trigger and decode: Displays supported bus information in a table for faster protocol-related troubleshooting.
• FFT and waveform mathematics: Adds frequency-domain inspection and arithmetic analysis to time-domain measurements.
• Waveform record and replay: Supports reviewing changing or intermittent signal behavior.
• USB-powered aluminum design: Reduces bench space and simplifies transport between computers and test stations.

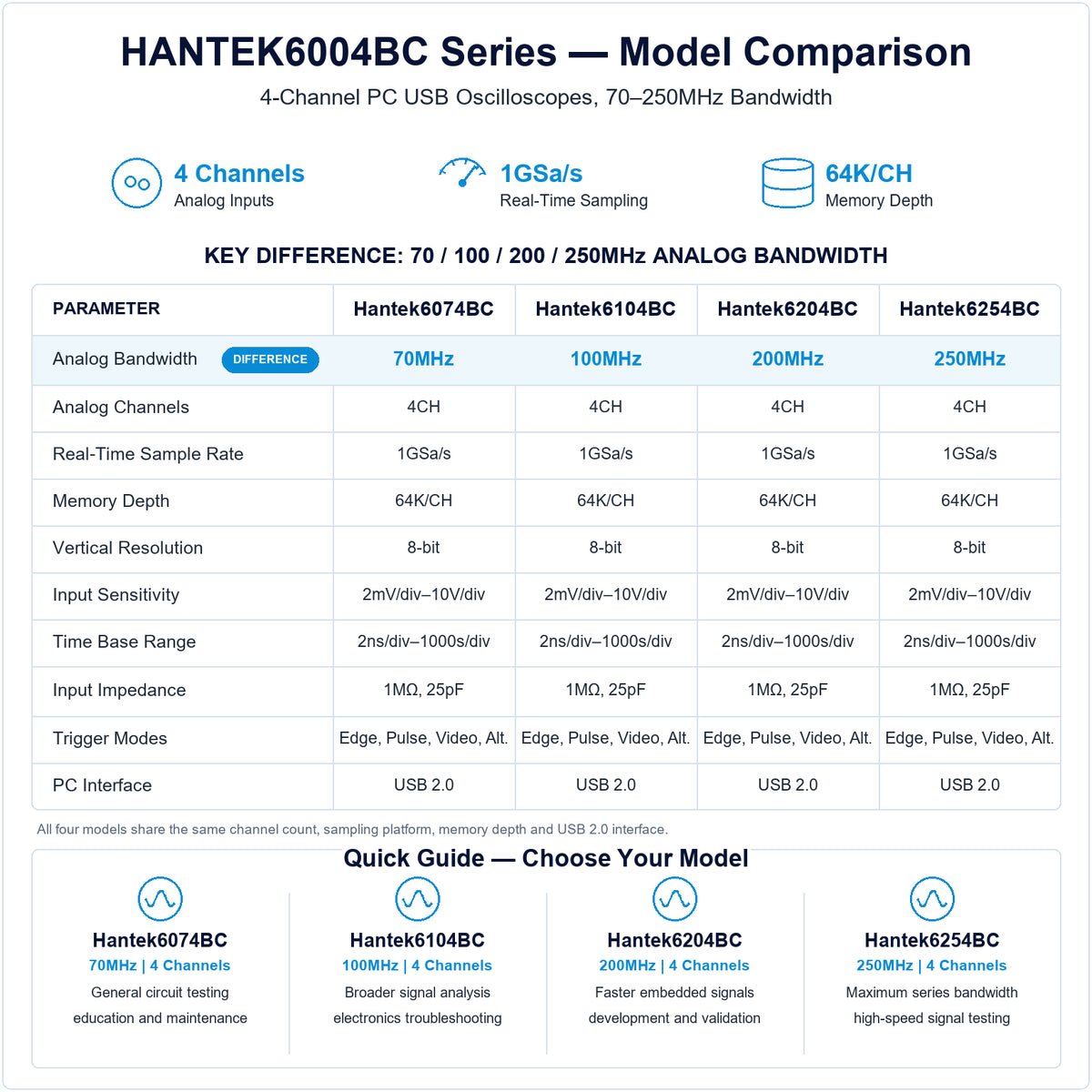

Model Differences & Selection

• Hantek6074BC — 70MHz: Suited to education, routine maintenance and general low-frequency circuit testing.
• Hantek6104BC — 100MHz: Adds bandwidth headroom for broader electronics troubleshooting and control-system work.
• Hantek6204BC — 200MHz: Fits faster embedded signals, product development and validation tasks.
• Hantek6254BC — 250MHz: Provides the highest bandwidth in the series for high-speed signal inspection.

Applications

• Electronic circuit development and debugging
• Production-line testing and pass/fail inspection
• Equipment repair and maintenance
• Embedded-system and serial-bus analysis
• Engineering education and laboratory training
• Multi-channel PC-based data acquisition

Why Choose the Hantek6004BC Series?

The series provides four-channel acquisition in a compact USB-powered instrument. Because the four models share the same sampling platform, memory, inputs and analysis functions, selection is straightforward: choose Hantek6074BC, Hantek6104BC, Hantek6204BC or Hantek6254BC according to the analog bandwidth required by the application.
