Hantek2000 Series 40–70MHz 3-in-1 Handheld Oscilloscopes

The Hantek2000 Series combines a 2-channel handheld oscilloscope and 4000-count digital multimeter in a compact battery-powered tester. Four models provide either 40MHz or 70MHz bandwidth, with a maximum 250MSa/s single-channel sample rate and a 2.8-inch 320×240 color display for field service, electronics repair, education and mobile troubleshooting.

Hantek2D models add a 1-channel 25MHz arbitrary waveform generator, creating a 3-in-1 platform for signal capture, electrical measurement and circuit stimulus. Hantek2C models retain the oscilloscope and multimeter functions for users who do not require an integrated signal source.

Key Features

• 40MHz or 70MHz bandwidth: Choose the frequency range that matches routine maintenance or faster electronics signals.
• 2-channel oscilloscope: Compare two analog signals, including input/output relationships and timing between circuit nodes.
• 250MSa/s maximum sampling: Supports detailed single-channel waveform capture; dual-channel sampling operates at 125MSa/s.
• 6Kpts maximum record length: Stores up to 6Kpts with one channel active or 3Kpts per channel in dual-channel operation.
• 4000-count digital multimeter: Measures voltage, current, resistance, capacitance, diode behavior and continuity.
• 25MHz AWG on Hantek2D models: Generates sine, square and additional waveform types for stimulus-and-response testing.
• Portable power system: Replaceable 18650 lithium batteries and USB Type-C charging support mobile work.
• Adjustable support stand: Positions the instrument for benchtop viewing while retaining handheld portability.

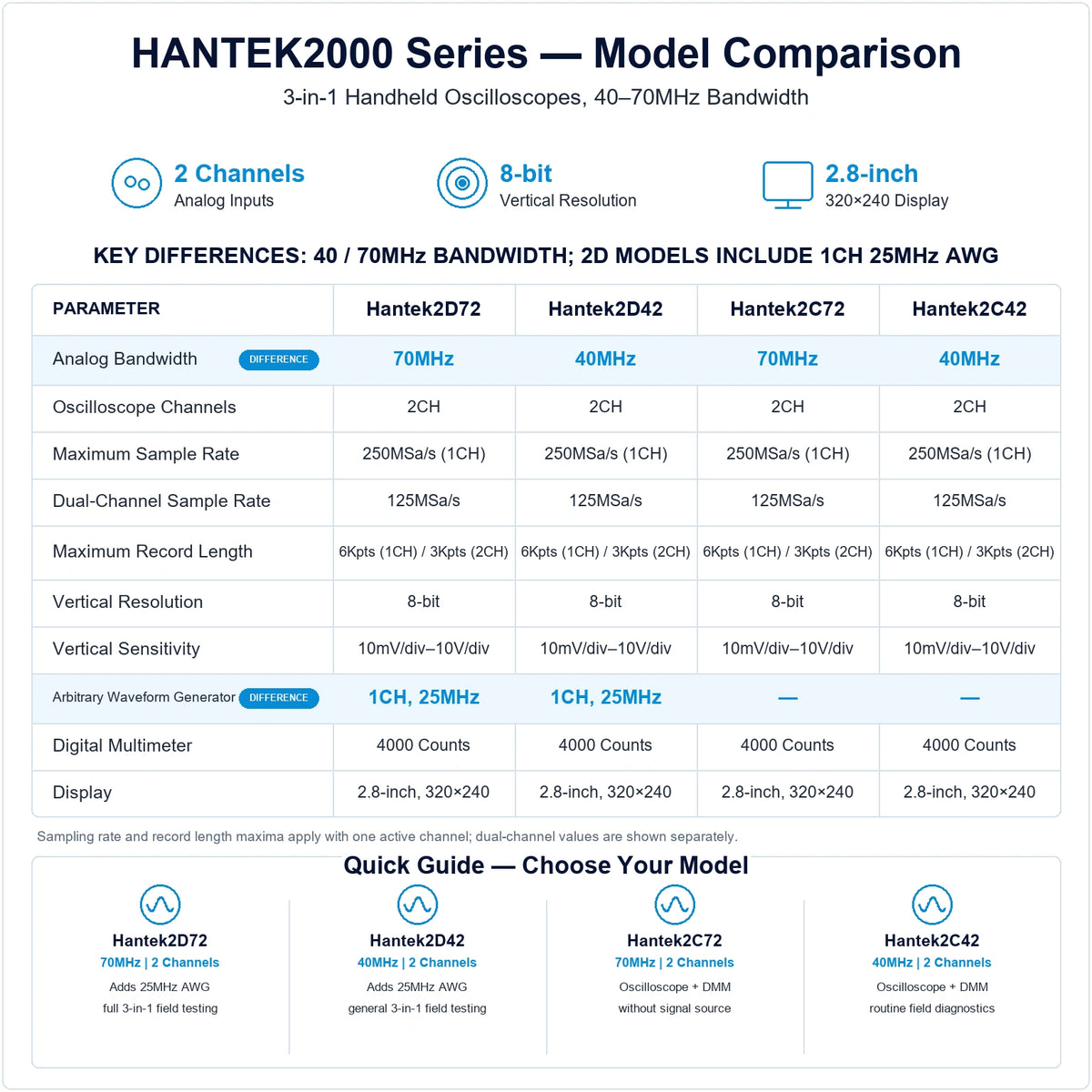

Model Differences & Selection

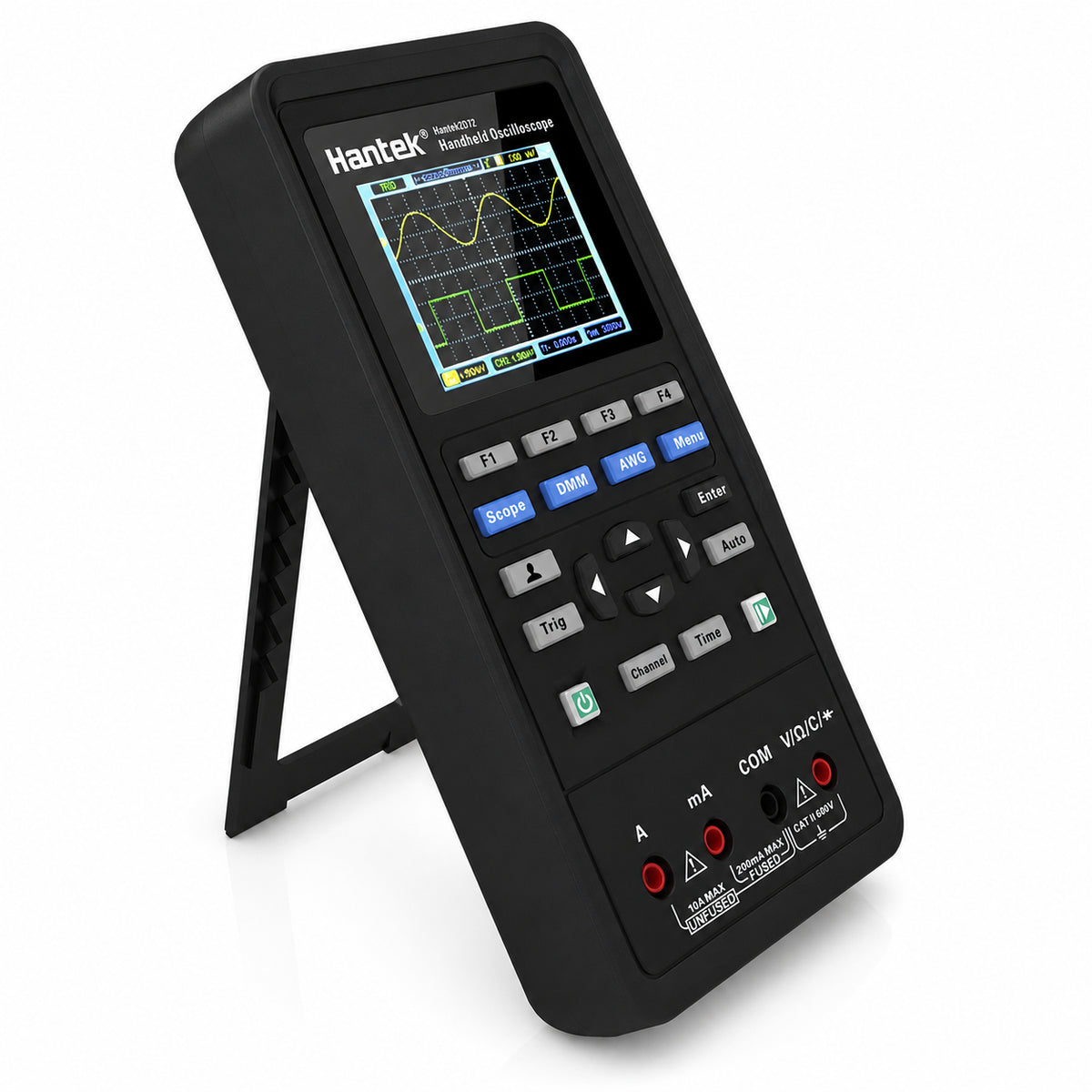

• Hantek2D72: 70MHz oscilloscope with DMM and 25MHz AWG for the broadest measurement and signal-generation capability in the series.
• Hantek2D42: 40MHz oscilloscope with DMM and 25MHz AWG for general field diagnostics requiring an integrated source.
• Hantek2C72: 70MHz oscilloscope and DMM for higher-frequency measurements when an AWG is not required.
• Hantek2C42: 40MHz oscilloscope and DMM for routine electronics servicing and educational measurements.

Applications

• Field service and mobile equipment diagnostics
• Electronic circuit repair and maintenance
• Embedded hardware waveform checks
• Electrical measurements with waveform visibility
• Laboratory instruction and engineering education

Why Choose the Hantek2000 Series?

The series reduces the number of separate instruments needed for mobile testing. Select a 70MHz model for faster signals, a 40MHz model for routine diagnostics, and a Hantek2D version when the test workflow also requires a built-in waveform source.
