Hantek TO1112 Series 110MHz Handheld Oscilloscopes

The Hantek TO1112 Series combines a portable 2-channel digital oscilloscope with 110MHz bandwidth, 250MSa/s real-time sampling and 8Mpts memory. Its 7-inch 800×480 capacitive multi-touch display and protective tablet-style housing support waveform testing at the bench, in education and during field service.

Three configurations let buyers select only the integrated functions they need. TO1112 provides oscilloscope measurement, TO1112C adds a 4000-count digital multimeter, and TO1112D combines the oscilloscope and multimeter with a built-in 25MHz single-channel signal source.

Key Features

• 110MHz bandwidth: Supports general electronics development, maintenance, education and field troubleshooting.
• 250MSa/s real-time sampling: Captures waveform data across both oscilloscope channels.
• 8Mpts memory depth: Retains longer acquisitions for closer inspection of waveform events and signal detail.
• 10mV/div–10V/div vertical sensitivity: Provides a practical input range for common electronic and electrical measurements.
• 7-inch 800×480 multi-touch display: Enables direct waveform navigation and parameter adjustment through the graphical interface.
• Flexible acquisition and triggering: Normal, average, peak-detect and high-resolution acquisition are paired with edge, pulse-width, slope, video and timeout triggers.
• Waveform analysis: FFT and up to 42 automatic measurements support time-domain and frequency-domain inspection.
• 4000-count DMM on TO1112C and TO1112D: Adds voltage, current, resistance, capacitance, diode and continuity measurements.
• 25MHz signal source on TO1112D: Adds a built-in single-channel stimulus source for circuit response and functional testing.
• Portable power: Rechargeable battery operation and Type-C fast charging support mobile measurement workflows.

Applications

• Embedded electronics and digital-circuit troubleshooting
• Power-supply, sensor and control-signal measurements
• Electronics maintenance and field service
• Laboratory teaching and practical electronics training
• Combined waveform and multimeter diagnostics with TO1112C or TO1112D
• Signal stimulus and response testing with TO1112D

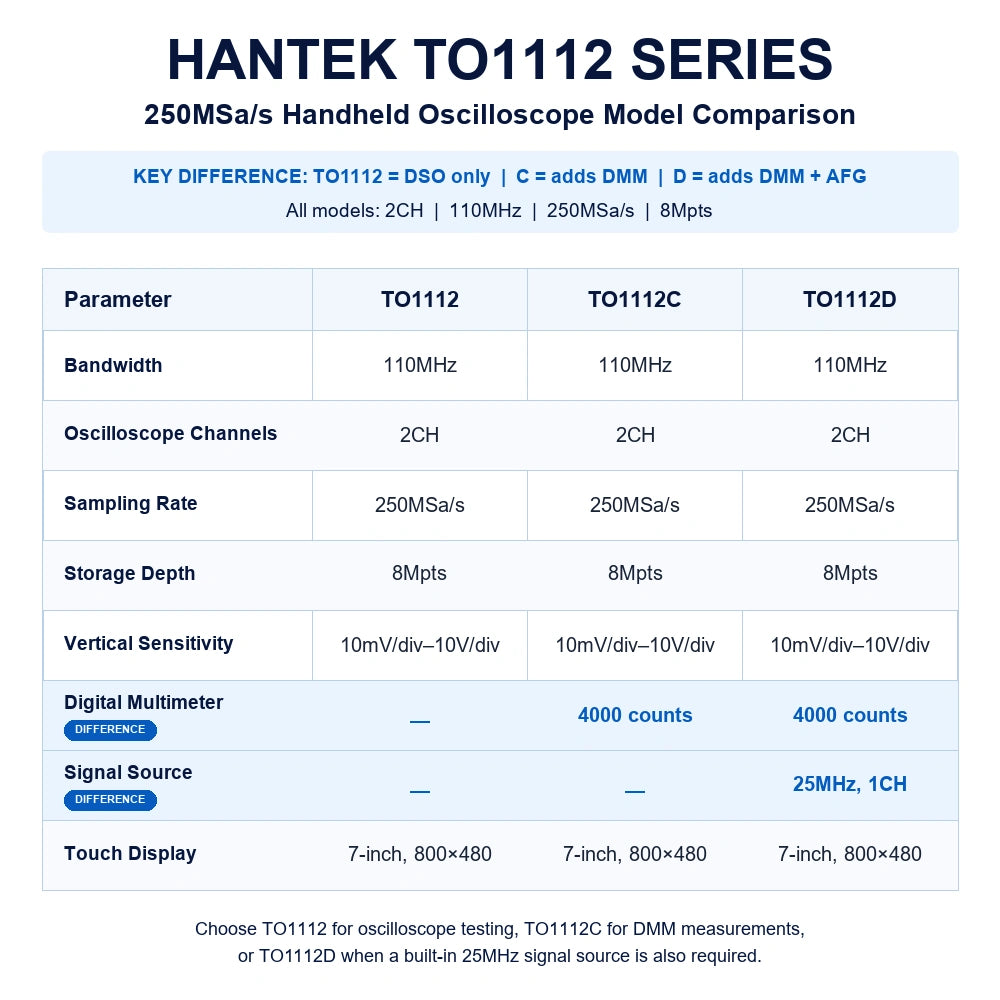

Model Differences & Selection

• TO1112: A 2-channel 110MHz oscilloscope without the integrated DMM or signal source. Choose it when portable waveform acquisition is the only required measurement function.
• TO1112C: Adds the 4000-count digital multimeter while retaining the same oscilloscope performance. Choose it for service work that combines waveform and electrical measurements.
• TO1112D: Adds both the 4000-count DMM and a 25MHz single-channel signal source. Choose it when waveform acquisition, electrical measurements and signal stimulus are needed in one instrument.

Why Choose the TO1112 Series?

The TO1112 Series provides a consistent 110MHz, 250MSa/s oscilloscope platform with three clearly separated function sets. This lets technicians, educators and electronics developers choose a waveform-only instrument or add integrated multimeter and signal-generation capabilities without changing the core oscilloscope interface.
