Hantek DSO8000E 70–200MHz 6-in-1 Handheld Oscilloscopes

The Hantek DSO8000E Series combines a two-channel digital oscilloscope, waveform recorder, 6000-count digital multimeter, spectrum analyzer, frequency counter and 25MHz arbitrary waveform generator in one portable instrument. Four bandwidth options from 70MHz to 200MHz let technicians match the instrument to the signals they need to inspect while retaining a shared 1GSa/s real-time sampling rate and 2Mpts memory depth.

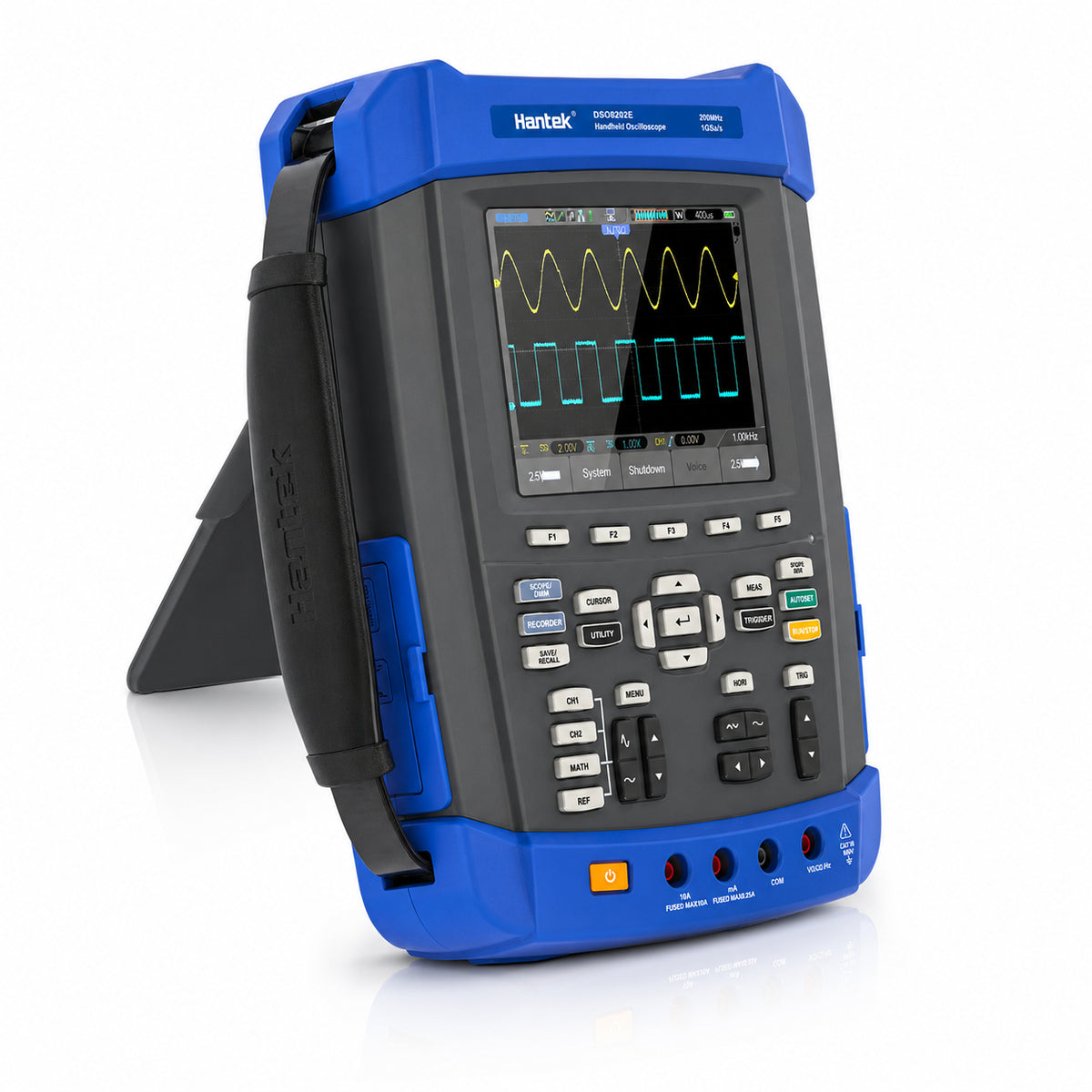

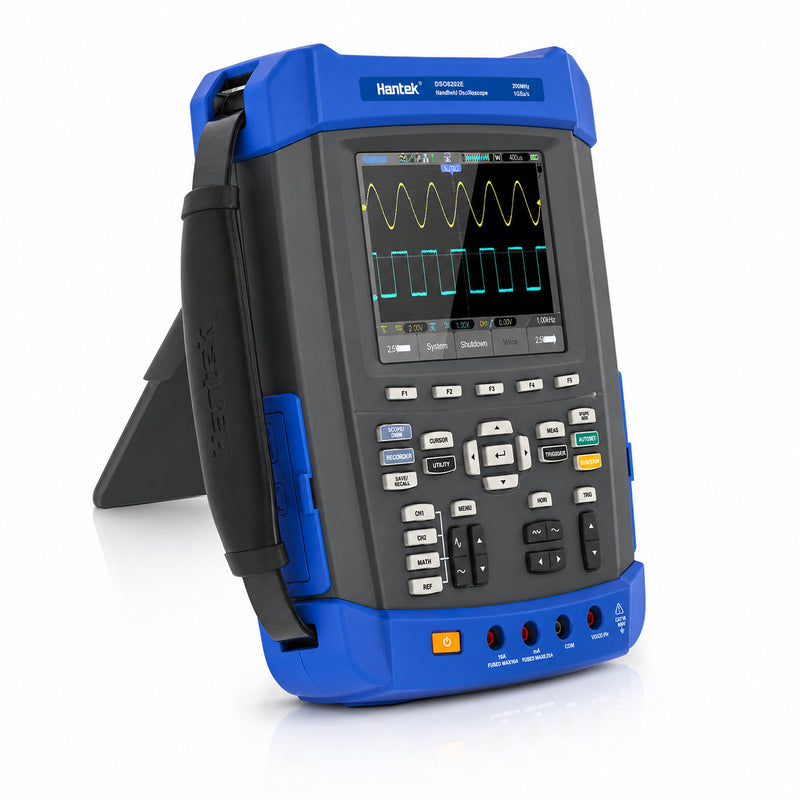

Its 5.6-inch 640×480 color display, integrated rear stand and IP51-rated handheld enclosure support waveform capture, electrical measurements and signal generation at a workbench or in the field. Combining six measurement functions reduces the number of separate instruments required for service, installation and troubleshooting work.

Key Features

• 70–200MHz bandwidth range: Choose the acquisition performance required for general electronics, embedded systems or higher-speed signal troubleshooting.
• 1GSa/s real-time sampling: Captures signal detail across all four models with a consistent sampling platform.
• 2Mpts memory depth: Retains longer waveform records for closer inspection of intermittent events and timing behavior.
• Two analog channels: Compare related signals such as input and output, clock and data, or command and response.
• Integrated 25MHz AWG: Generates test stimuli without requiring a separate benchtop signal source.
• 6000-count digital multimeter: Adds portable voltage, current and resistance measurements for electrical diagnostics.
• Recorder, spectrum and counter functions: Extends the instrument from time-domain waveform viewing to trend capture and frequency-oriented checks.
• 5.6-inch 640×480 display: Presents waveform traces, measurements and menus on a clear color interface.
• IP51 handheld design: Supports mobile inspection, equipment servicing and on-site troubleshooting.

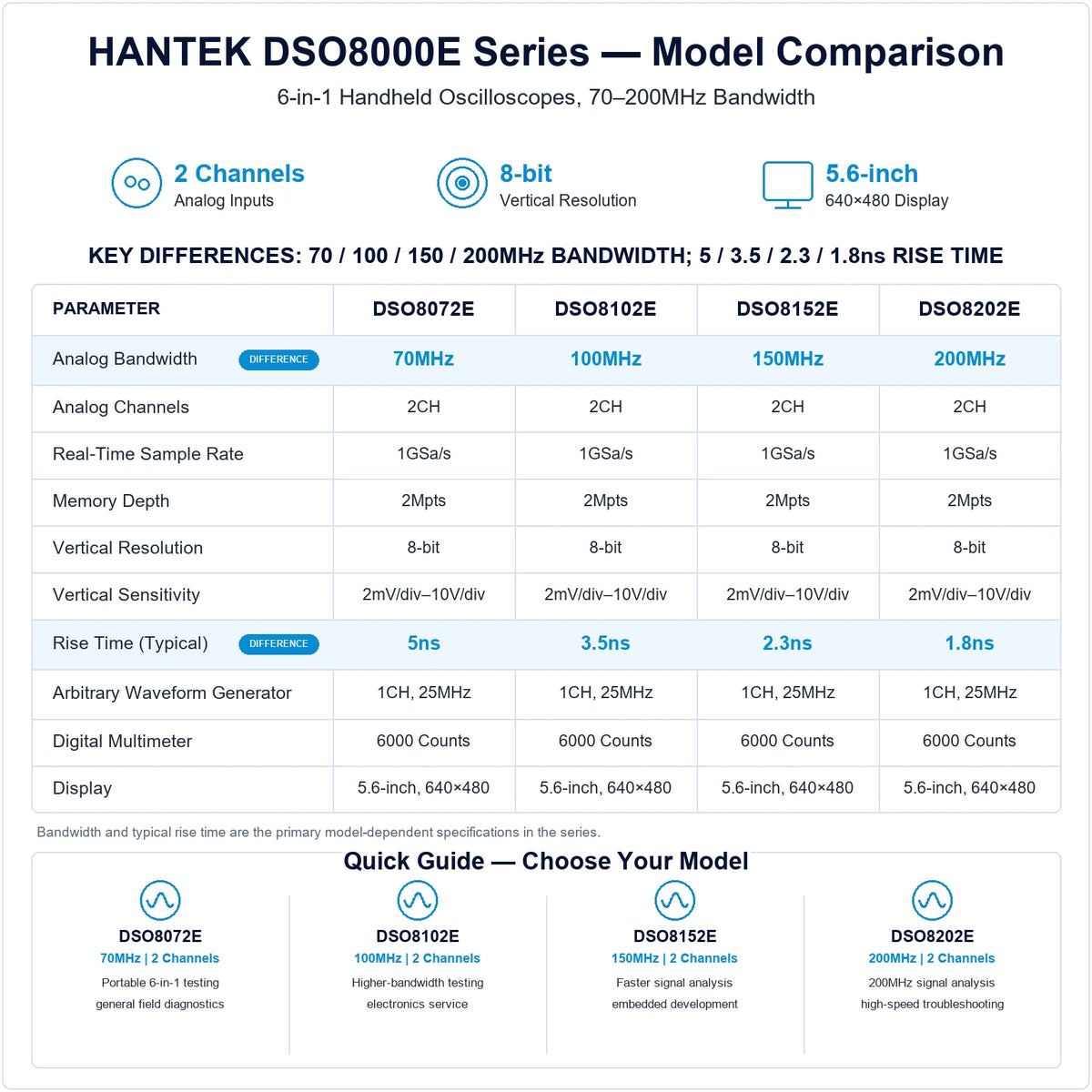

Model Differences & Selection

• DSO8072E — 70MHz: Suited to routine field diagnostics, education and general low-frequency electronics work.
• DSO8102E — 100MHz: Adds bandwidth headroom for maintenance, control systems and broader electronics servicing.
• DSO8152E — 150MHz: Fits faster embedded signals and development tasks that benefit from a shorter 2.3ns typical rise time.
• DSO8202E — 200MHz: Provides the highest bandwidth in the series and a 1.8ns typical rise time for higher-speed troubleshooting.

Applications

• Field service and equipment maintenance
• Embedded-system development and debugging
• Electrical and electronic fault diagnosis
• Industrial installation and commissioning
• Technical education and laboratory training

Why Choose the DSO8000E Series?

The DSO8000E Series is designed for users who need oscilloscope analysis, multimeter measurements and signal generation in one transportable platform. The shared interface and feature set simplify model selection: choose DSO8072E, DSO8102E, DSO8152E or DSO8202E according to the bandwidth and rise-time performance required by the application.
