Hantek DSO2000 100–150MHz Digital Oscilloscopes

The Hantek DSO2000 Series comprises four 2-channel digital oscilloscopes for electronics development, embedded-system debugging, service work and education. Buyers can select 100MHz or 150MHz bandwidth, while every model provides up to 1GSa/s single-channel sampling, up to 8M single-channel memory and a 7-inch 800×480 color display.

DSO2C10 and DSO2C15 focus on oscilloscope measurement, while DSO2D10 and DSO2D15 add a built-in 25MHz single-channel arbitrary/function generator. Standard serial bus trigger and decoding, automatic measurements, FFT, pass/fail testing and SCPI control support both manual diagnostics and structured laboratory workflows.

Key Features

• 100MHz or 150MHz bandwidth: Select the frequency range that matches the signals and edge speeds under test.
• Two independently controlled channels: Separate channel controls simplify comparison of input, output and timing relationships.
• Up to 1GSa/s sampling: Provides 1GSa/s with one active channel and 500MSa/s with both channels active.
• Deep acquisition memory: Stores up to 8M points in single-channel operation or 4M points with both channels active.
• 2mV/div–10V/div vertical sensitivity: Covers low-level electronic signals and larger circuit voltages across a broad adjustment range.
• Serial bus analysis: Trigger and decoding support RS232/UART, I2C, SPI, CAN and LIN troubleshooting.
• 32 automatic measurements with statistics: Displays measurement results together with maximum, minimum and standard-deviation statistics.
• Waveform analysis and qualification: FFT, mathematical operations, cursor measurements and pass/fail testing support signal evaluation.
• 25MHz AFG on D models: DSO2D10 and DSO2D15 add a 1-channel, 200MSa/s, 12-bit waveform source for stimulus-and-response tests.
• USB and SCPI connectivity: USB Host/Device interfaces and remote commands support data transfer, screenshots and automated control.

Applications

• Embedded-system and microcontroller debugging
• UART, I2C, SPI, CAN and LIN protocol troubleshooting
• Power-supply, sensor and control-signal measurements
• Electronics repair, maintenance and production diagnostics
• Laboratory teaching and practical circuit training
• Signal stimulus and response testing with DSO2D10 or DSO2D15

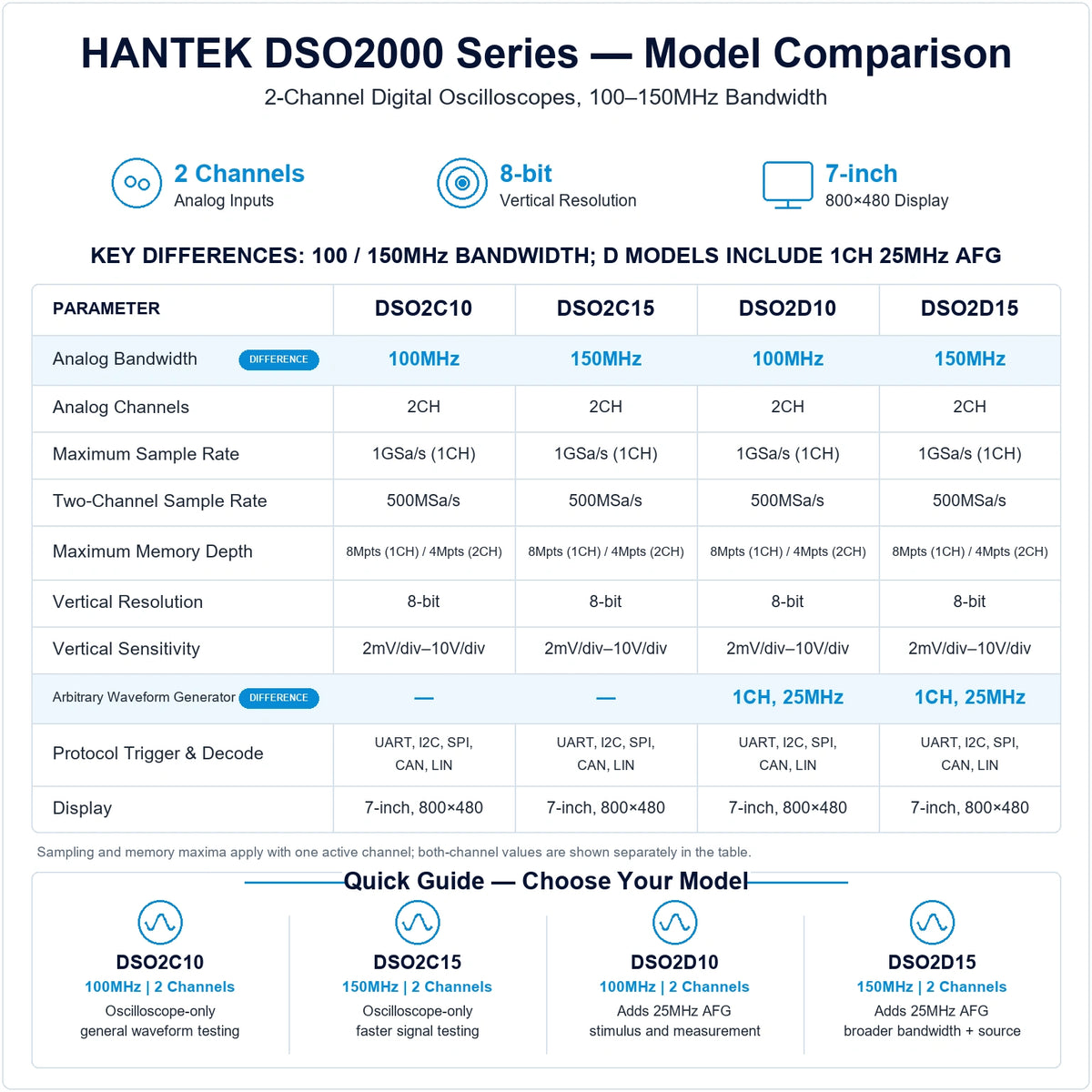

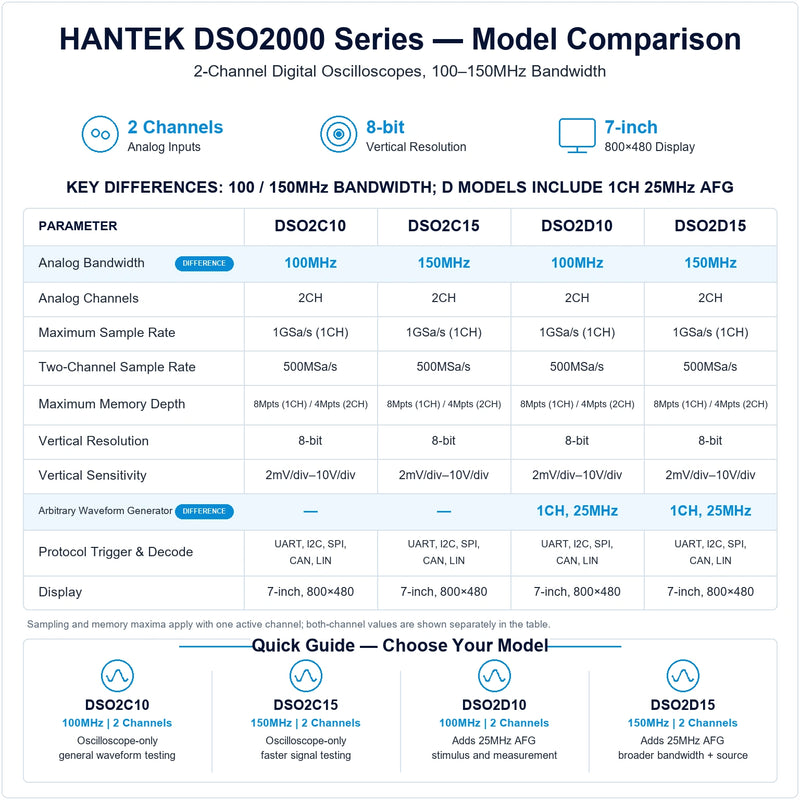

Model Differences & Selection

• DSO2C10: 100MHz oscilloscope without the integrated waveform generator. Choose it for general electronics measurements when an external source is already available or not required.
• DSO2C15: Increases oscilloscope bandwidth to 150MHz without adding the internal generator. Choose it for faster signals while retaining the oscilloscope-only configuration.
• DSO2D10: Combines 100MHz oscilloscope bandwidth with the built-in 25MHz 1-channel AFG. Choose it when signal stimulus and measurement are needed in one instrument.

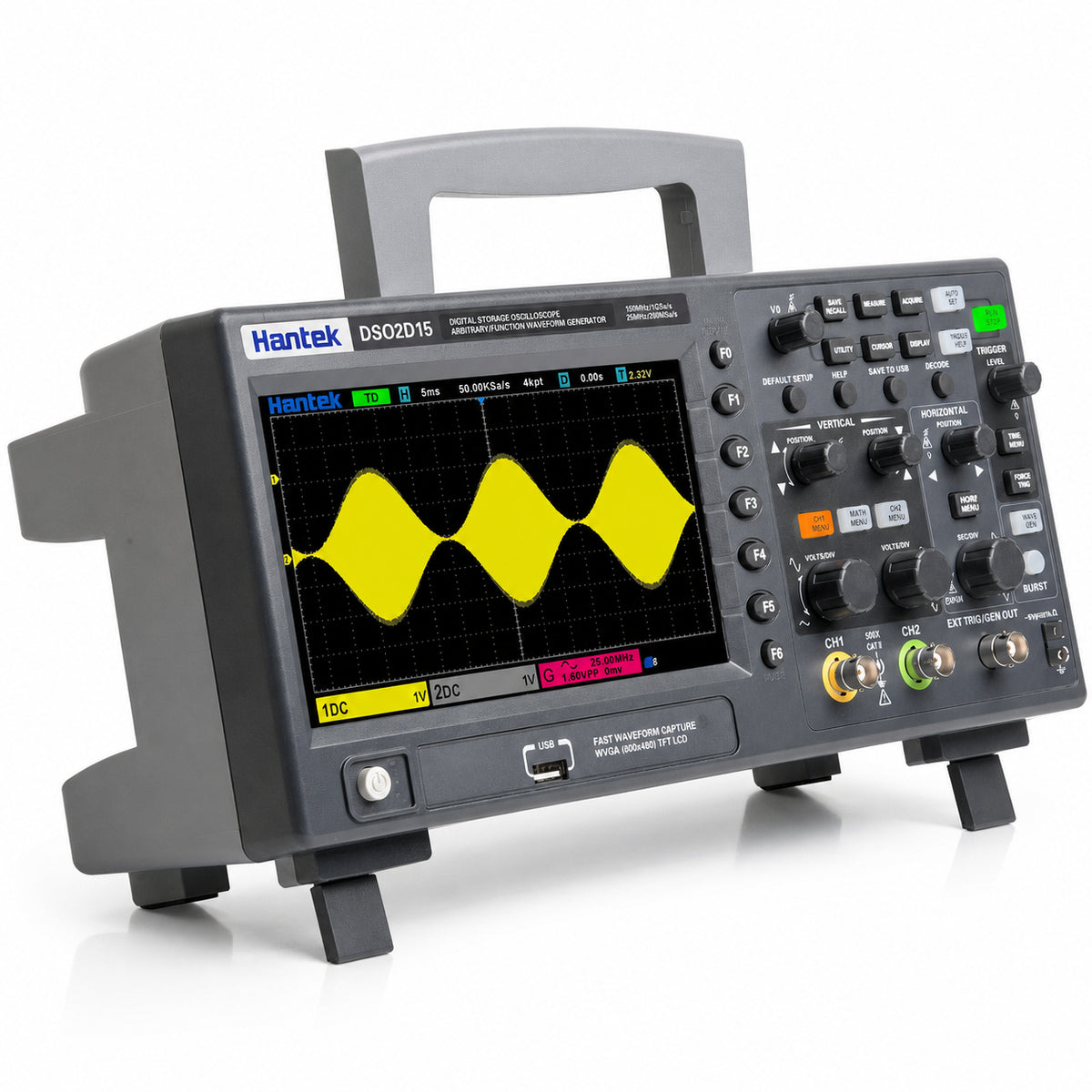

• DSO2D15: Combines the highest 150MHz bandwidth in this group with the built-in 25MHz AFG. Choose it when both the broader measurement bandwidth and integrated waveform generation are required.

Why Choose the DSO2000 Series?

The DSO2000 Series offers a clear choice between two bandwidth levels and two function configurations without changing the core interface or analysis workflow. It suits buyers who need a bench oscilloscope with deep memory and protocol tools, with the option to integrate signal generation in the D models.
