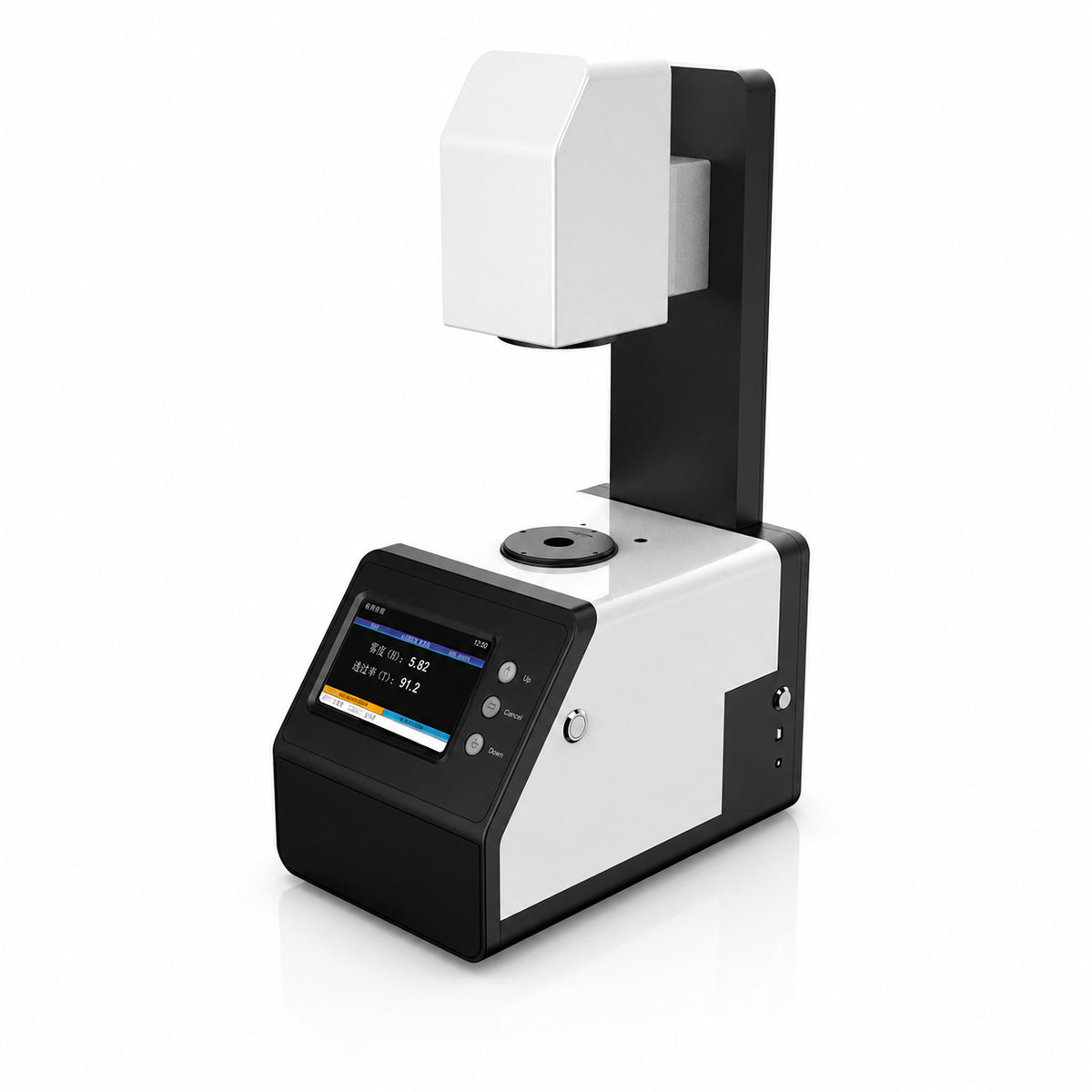

CHNSpec TH-09, TH-100 & TH-110 Haze Meters

The CHNSpec TH-09, TH-100 and TH-110 are benchtop haze meters for measuring haze and total transmittance in transparent and translucent materials. Their open 0/d measurement area accommodates films, plastic sheets, glass, LCD panels and touchscreens with sample thicknesses up to 145mm.

No warm-up is required, and data is available in 1.5s. Ambient-light-resistant signal processing and horizontal or vertical operation help laboratories and production teams inspect samples efficiently without restricting their overall width or height.

Key Features

• Haze and total transmittance: One instrument covers two essential optical-quality measurements.
• 0–100% measurement range: Evaluate clear and diffuse transparent materials with 0.01% haze resolution.
• Open measurement area: Measure films, sheets and panels without limiting sample width or height.
• Fast, no-warm-up workflow: Start testing after calibration and obtain data in 1.5s.
• Ambient-light resistance: Dedicated signal processing supports reliable measurements in practical work environments.
• Flexible orientation: Operate the instrument horizontally or vertically to suit different sample forms.
• PC management: Standard Haze QC software supports data organization and analysis.
• Broad standards coverage: Model-dependent support includes ASTM D1003/D1044, ISO 13468/14782, JIS K7105/K7361/K7136 and GB/T 2410-08.

Applications

• Plastic-film and sheet transparency inspection
• Architectural, automotive and display-glass testing
• LCD panel and touchscreen optical quality control
• Packaging, coating and transparent-material development
• Incoming inspection and production consistency checks

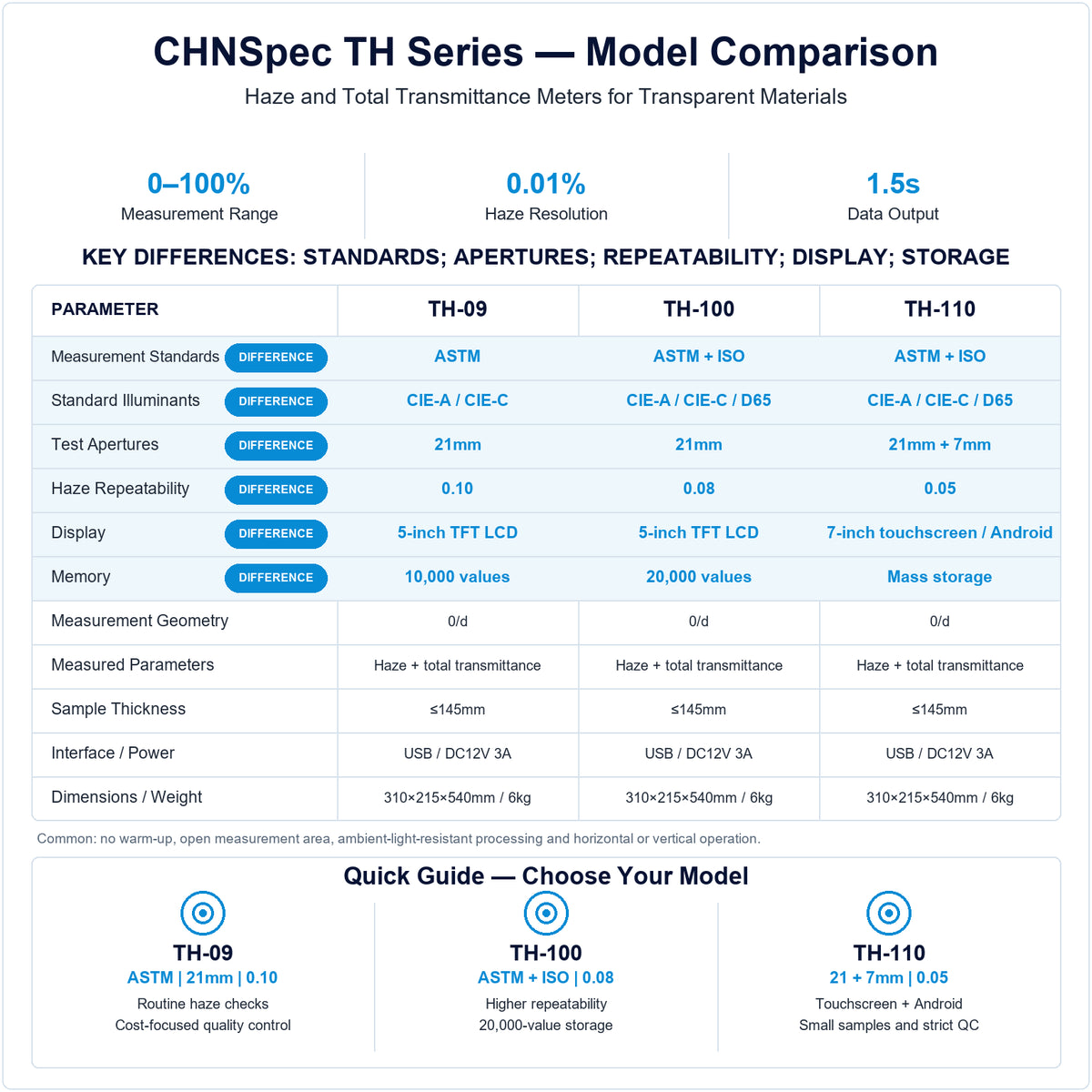

Model Differences & Selection

• TH-09: Provides ASTM haze and transmittance measurement with CIE-A/C illumination, a 21mm aperture, 0.10 haze repeatability and storage for 10,000 values. Choose it for routine ASTM-focused quality control.
• TH-100: Adds ASTM and ISO measurement support, CIE-D65 illumination, improved 0.08 repeatability and storage for 20,000 values. It suits laboratories requiring broader standards coverage and higher precision.
• TH-110: Combines ASTM and ISO modes with 21mm and 7mm apertures, 0.05 repeatability, mass storage and a 7-inch Android touchscreen. Select it for small samples, demanding optical QC and a modern touch interface.

Why Choose the CHNSpec TH Series?

The TH Series provides a consistent measurement platform from routine ASTM inspection to high-repeatability dual-aperture analysis. Buyers can match standards, sample size, storage and interface requirements without changing the core haze and transmittance workflow.
