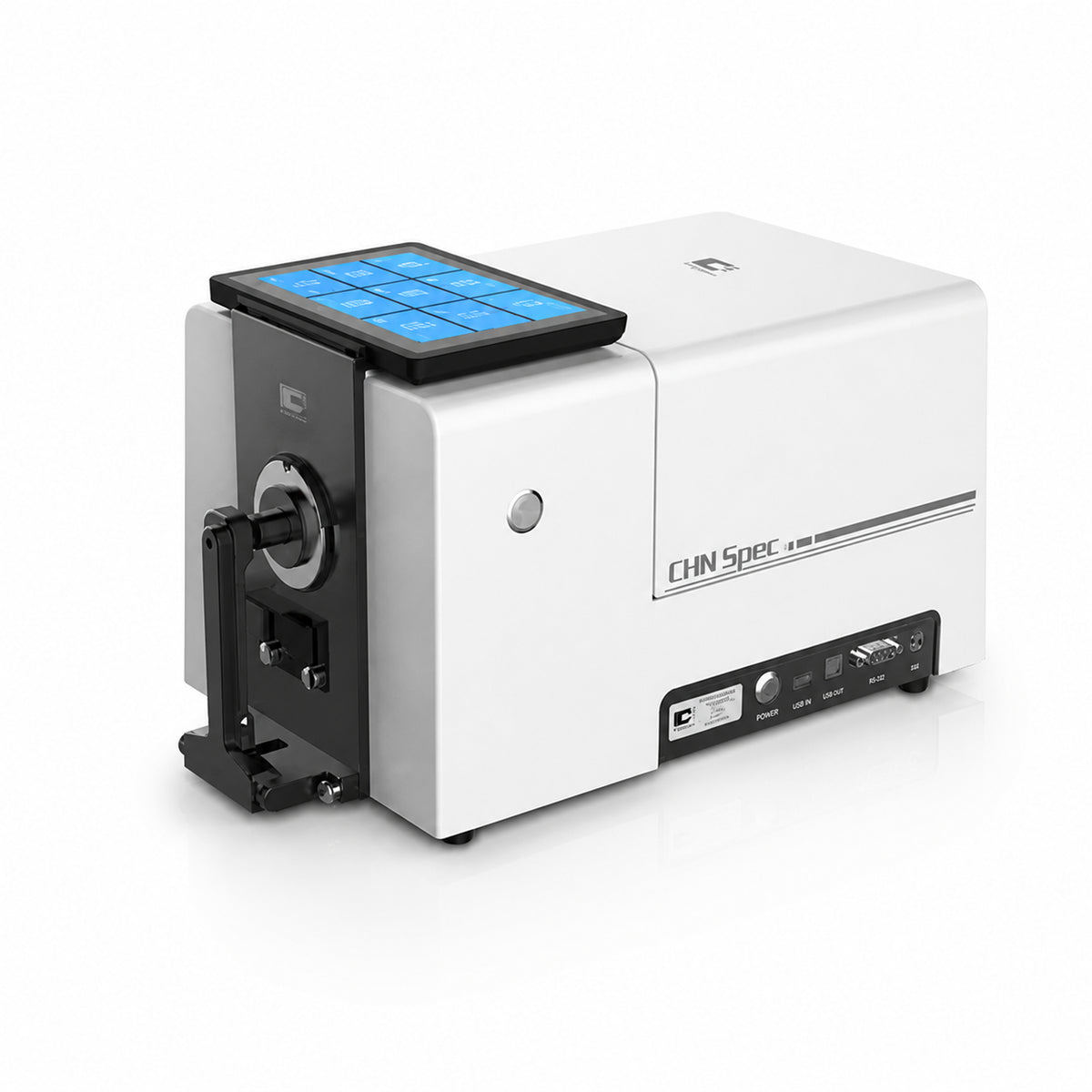

CHNSpec CS-820 Series Benchtop Spectrophotometers

The CHNSpec CS-820P, CS-821N and CS-826 are benchtop spectrophotometers for laboratory color analysis, incoming inspection and production quality control. Each model combines d/8 reflection and d/0 transmission measurement, simultaneous SCI/SCE capture, a 360–780nm wavelength range and selectable apertures for solids, films, liquids and other sample formats.

A 7-inch capacitive touchscreen, Android operating system, 8GB storage and PC-side color management support streamline routine measurement and reporting. Pulsed xenon and LED illumination, selectable UV cutoff modes and automatic aperture recognition help one platform cover both conventional and fluorescent materials.

Key Features

• Reflection and transmission: d/8 reflection and d/0 transmission geometries support opaque, translucent and transparent samples.
• Simultaneous SCI/SCE measurement: Evaluate color with and without the influence of surface gloss in one workflow.
• 360–780nm spectral range: Full visible-spectrum measurement with 10nm data intervals.
• Flexible measurement apertures: XLAV, LAV, MAV and SAV reflection apertures plus transmission apertures accommodate different sample sizes.
• UV control: Included UV and 400nm, 420nm or 460nm cutoff settings support fluorescence-related color evaluation.
• Fast operation: Single-mode measurements take less than 2s.
• Touchscreen workflow: The 7-inch capacitive display and Android interface provide direct access to spectral data, color values, color differences and pass/fail results.
• Data connectivity: RS-232, USB and USB-B interfaces support data transfer and integration with PC color-management workflows.

Applications

• Laboratory color formulation and analysis
• Incoming-material and production color quality control
• Plastics, coatings, textiles, printing and packaging
• Transparent liquids, films and other transmission samples
• Dark-color and fluorescent-material evaluation

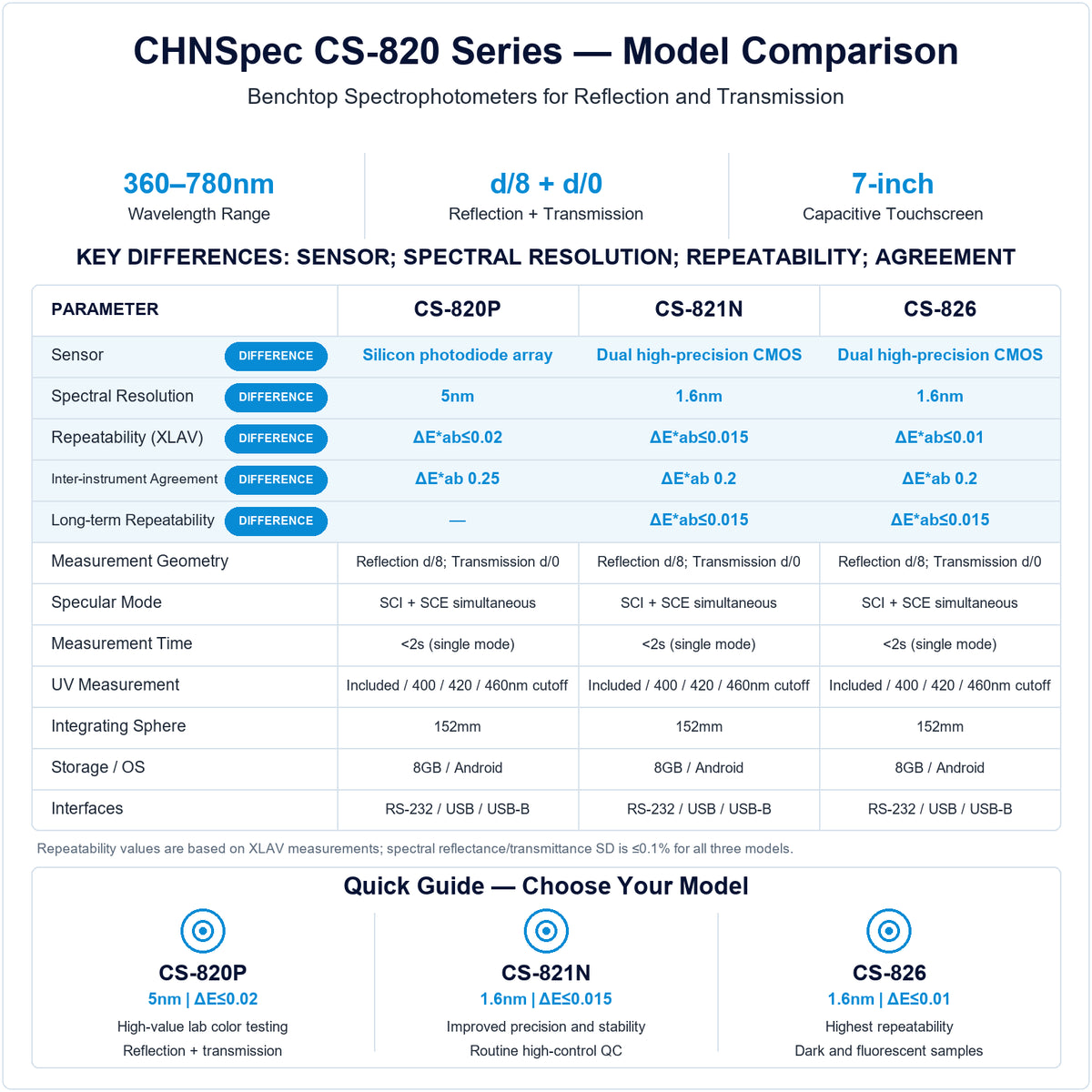

Model Differences & Selection

• CS-820P: Uses a silicon photodiode array with 5nm spectral resolution, ΔE*ab≤0.02 repeatability and ΔE*ab 0.25 inter-instrument agreement. Choose it for cost-conscious laboratory reflection and transmission work.
• CS-821N: Adds a dual high-precision CMOS array, 1.6nm spectral resolution, ΔE*ab≤0.015 repeatability and ΔE*ab 0.2 agreement. It is suited to routine quality control requiring improved precision and long-term stability.
• CS-826: Provides the highest repeatability in the group at ΔE*ab≤0.01, with 1.6nm spectral resolution and ΔE*ab 0.2 agreement. Select it for demanding color matching, dark samples and fluorescent-material measurements.

Why Choose the CHNSpec CS-820 Series?

The series combines reflection and transmission measurement, configurable apertures, UV control and touchscreen operation in one benchtop platform. Buyers can select the CS-820P for value, the CS-821N for enhanced stability or the CS-826 for the most demanding repeatability requirements without changing the core workflow.
