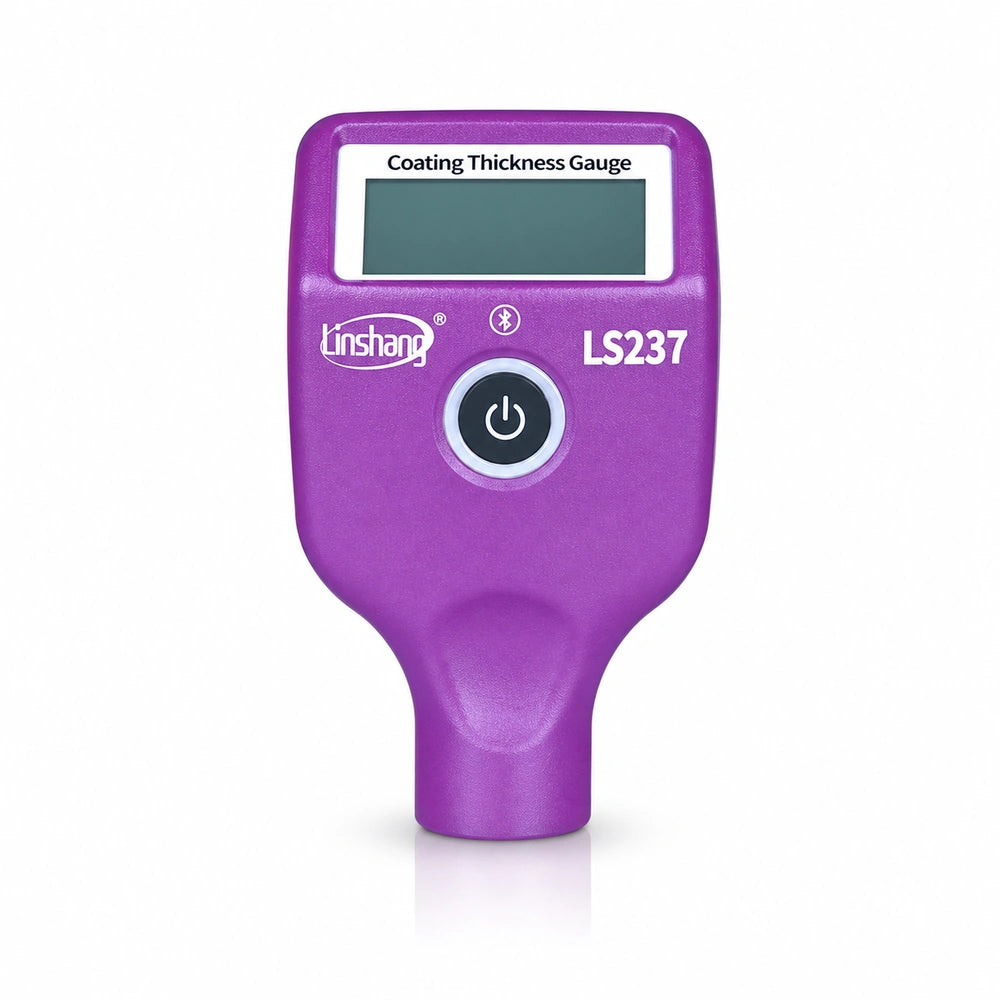

Linshang LS237 Rechargeable Car Paint Thickness Gauge

The Linshang LS237 is a rechargeable automotive paint thickness gauge with visual repair alerts and Bluetooth report generation. It measures paint from 0–5000μm on iron and aluminum panels while identifying galvanized steel, ferrous putty and non-metallic vehicle body components.

A three-color backlight and illuminated button provide immediate visual classification of paint thickness. The rotatable display supports measurements from different positions, while the rechargeable battery provides more than 50 hours of published operating time for repeated field inspections.

Key Features

• 0–5000μm measuring range: Covers factory paint, repainting and thick body-repair layers.
• Iron and aluminum measurement: Automatically applies Hall-effect or eddy-current measurement according to the substrate.
• Four-way substrate identification: Recognizes ferrous, aluminum, galvanized steel and non-metallic panels.
• Ferrous putty recognition: Activates two audible signals and red visual indicators when metallic filler is detected.
• Three-color thickness display: Uses white, yellow and red illumination to make paint-condition screening faster.
• Rotatable screen: Changes display orientation for easier reading on vertical, low or awkwardly positioned panels.
• Bluetooth inspection reports: Record measurements through the mobile app and save or share completed reports.
• 0.5s measurement: Supports efficient inspection across the complete vehicle body.
• Digital ruby probe: Combines signal processing at the probe with a wear-resistant measuring tip.
• Rechargeable USB Type-C battery: Delivers more than 50 hours of use per charge under published conditions.
• Six selectable languages: Supports multilingual vehicle inspection workflows.

Applications

• Mobile used-car inspection
• Body-panel repair detection
• Vehicle dealership evaluation
• Insurance and accident assessment
• Automotive refinishing quality control

Why Choose the Linshang LS237?

Choose the LS237 when rechargeable operation, rapid visual classification and report sharing are priorities. Its three-color display makes abnormal paint thickness and ferrous putty easier to recognize without interpreting every reading individually, while the rotatable screen improves access around the vehicle.
